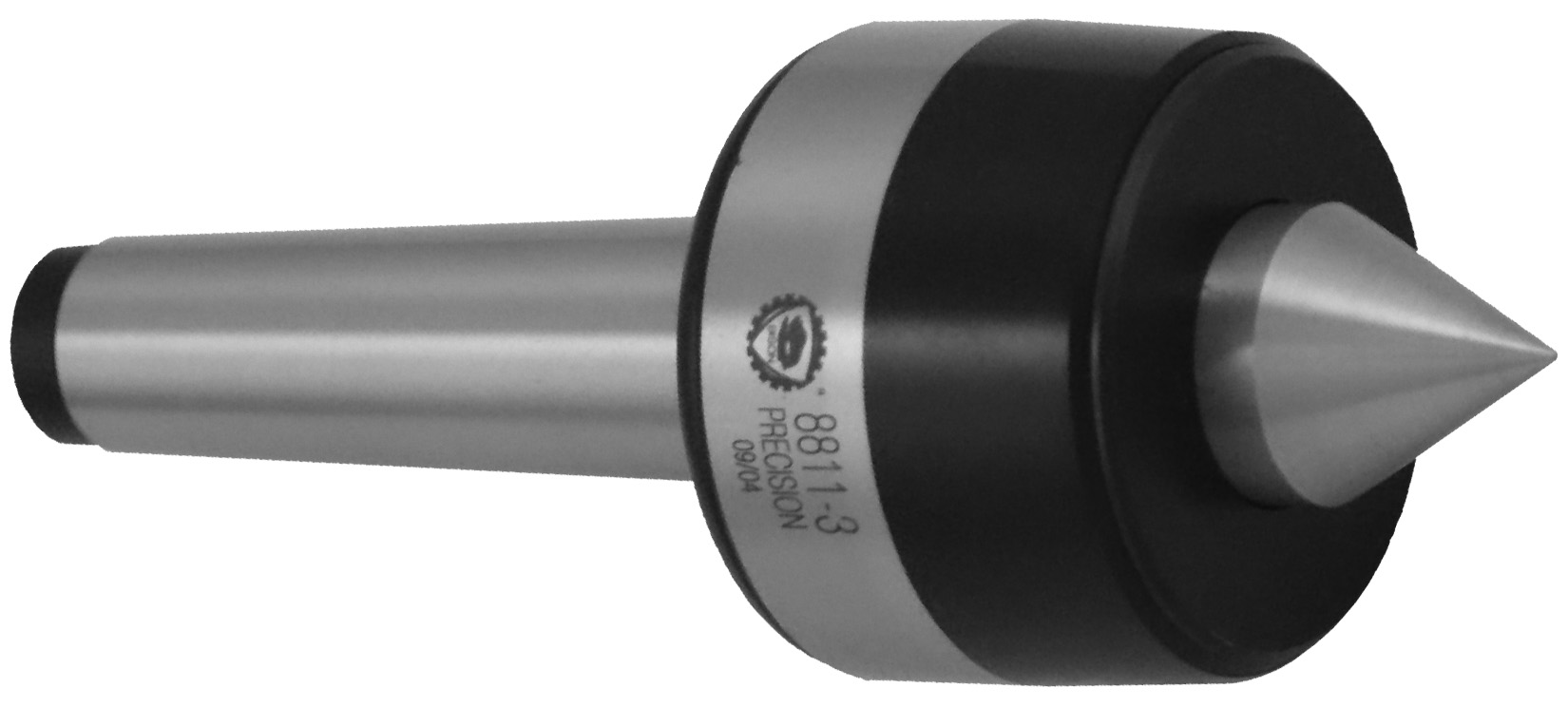

Heavy duty tailstock centre Bison type 8811-1

€60.75 *
€72.29 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 800006834
  • 84661020
  • 0,26 kg
  • 0
Heavy duty tailstock centre - Bison type 8811 MT 1 - standard version - DIN 228 more
Product information "Heavy duty tailstock centre Bison type 8811-1"

Heavy duty tailstock centre

- Bison type 8811 MT 1
- standard version
- DIN 228

Related links to "Heavy duty tailstock centre Bison type 8811-1"

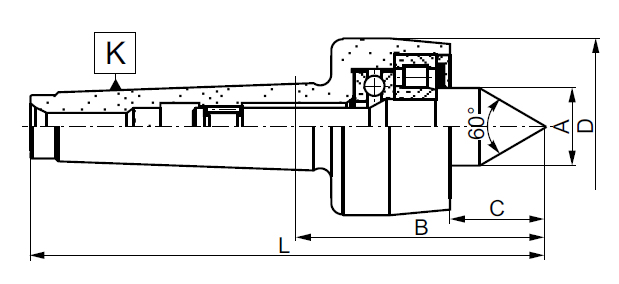

K MK / K MT Gewicht max. / Max. weight U min. / RPM... more
K MK /
K MT
Gewicht max. /
Max. weight
U min. /
RPM
Rundlaufabweichung /
Max. concentr. error
A B C D L
1 100 5000 0,008 15,0 49,5 17,0 38 103,0
2 180 5000 0,008 18,0 56,5 21,5 40 120,5
3 450 4000 0,008 25,0 75,0 27,5 56 156,0
4 1000 3000 0,008 32,0 85,0 33,5 64 187,0
5 1900 2500 0,010 40,0 108,0 44,0 85 237,0
6 3700 2000 0,010 62,4 151,5 64,0 130 333,5
7 9500 1000 0,020 75,0 196,5 73,5 150 447,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
