Heavy duty tailstock centre Bison type 8814-2

€66.00 *
€78.54 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 800006846
  • 84661020
  • 0,42 kg
  • 0
Heavy duty tailstock centre - with extended point - Bison type 8814 MT 2 - standard version... more
Product information "Heavy duty tailstock centre Bison type 8814-2"

Heavy duty tailstock centre

- with extended point
- Bison type 8814 MT 2
- standard version
- DIN 228

Related links to "Heavy duty tailstock centre Bison type 8814-2"

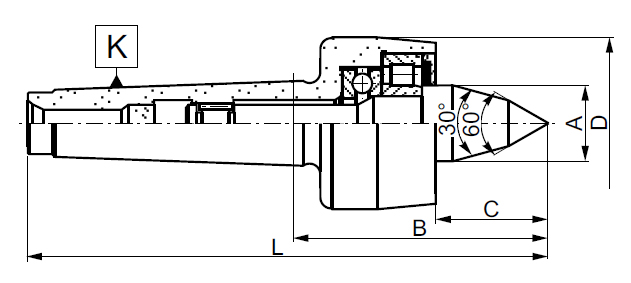

K MK / K MT Gewicht max. / Max. weight U min. / RPM... more
K MK /
K MT
Gewicht max. /
Max. weight
U min. /
RPM
Rundlaufabweichung /
Max. concentr. error
A B C D L
2 230 5000 0,015 18,0 64,5 29,5 40 128,5
3 380 4000 0,015 25,0 88,0 40,5 56 169,0
4 850 3000 0,015 32,0 103,0 51,5 64 205,0
5 1600 2500 0,020 40,0 130,0 66,0 85 259,0
6 3150 2000 0,020 62,4 178,0 92,0 130 360,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
