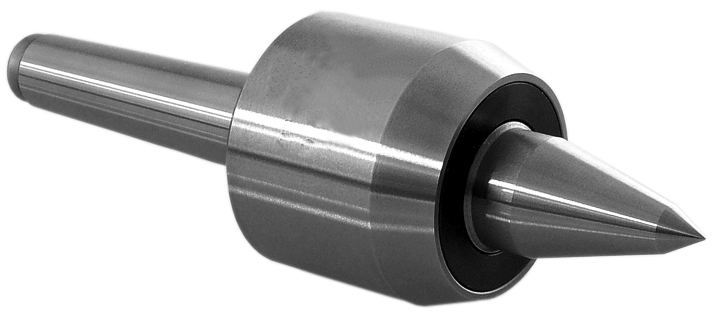

Revolving tailstock centre, 800 KOP type 863

€950.69 *
€1,131.32 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 03-863KOP
  • 8466 2091
  • 4049794005514
  • 11 kg
  • 3
Precision revolving tailstock centre, series 800 KOP with extended tip 30°/ 60° - type... more
Product information "Revolving tailstock centre, 800 KOP type 863"

Precision revolving tailstock centre, series 800 KOP
with extended tip 30°/ 60°

- type 863 KOP
- MT 6

- centre tip from chromium-alloyed tool steel
  with high wear resistance
- housing completely hardened and ground
- with strong axial bearing and double-row angular
  ball bearings
- high concentricity
- maintenance-free permanent lubrication
- optimum sealing to avoid penetration
  of coolant and dirt

Related links to "Revolving tailstock centre, 800 KOP type 863"

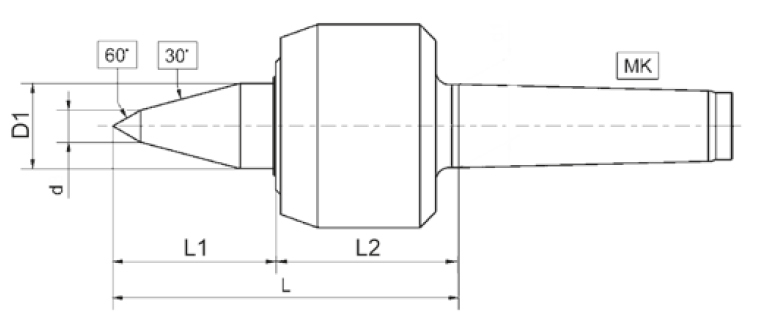

Typ / Type MK / MT D mm D1 mm L mm L1 mm L2 mm d mm Drehzahl / Speed max.... more
Typ /
Type
MK /
MT
D
mm
D1
mm
L
mm
L1
mm
L2
mm
d
mm
Drehzahl /
Speed max.
Werkstück /
Work piece max. kg
Rundlaufgenauigkeit /
Run-out max. mm
823 KOP 2 45 20 87 37 43 8 5000 100 0,005
831 KOP 3 45 20 88 37 43 8 5000 150 0,005
833 KOP 3 60 24 106 47 52 10 4300 300 0,005
841 KOP 4 60 24 107 47 52 10 4300 400 0,005
843 KOP 4 76 32 130 61 60 12 3200 600 0,005
851 KOP 5 78 32 132 61 60 12 3200 1200 0,005
853 KOP 5 96 42 157 71 74 16 2600 1400 0,007
863 KOP 6 110 52 178 86 82 20 2000 2500 0,01

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
