Revolving tailstock centre, series 800 type 831

€283.39 *
€337.23 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 03-831
  • 8466 2091
  • 4049794005378
  • 0,8 kg
  • 2
Precision revolving tailstock centre, series 800 - type 831 - MT 3 - centre tip... more
Product information "Revolving tailstock centre, series 800 type 831"

Precision revolving tailstock centre, series 800

- type 831
- MT 3

- centre tip from chromium-alloyed tool steel
  with high wear resistance
- housing completely hardened and ground
- with strong axial bearing and double-row angular
  ball bearings
- high concentricity
- maintenance-free permanent lubrication
- optimum sealing to avoid penetration
  of coolant and dirt

Related links to "Revolving tailstock centre, series 800 type 831"

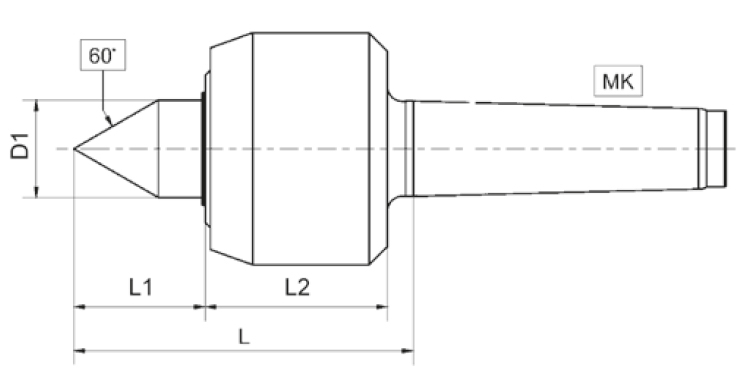

Typ / Type MK / MT D mm D1 mm L mm L1 mm L2 mm Drehzahl / Speed max.... more
Typ /
Type
MK /
MT
D
mm
D1
mm
L
mm
L1
mm
L2
mm
Drehzahl /
Speed max.
Werkstück /
Work piece max. kg
Rundlaufgenauigkeit /
Run-out max. mm
823 2 45 20 76 26 43 5000 150 0,005
831 3 45 20 77 26 43 5000 200 0,005
833 3 60 24 95 36 52 4300 400 0,005
841 4 60 24 97 36 52 4300 600 0,005
843 4 76 32 112 43 60 3200 750 0,005
851 5 78 32 118 47 60 3200 1800 0,005
853 5 96 42 134 49 74 2600 2000 0,007
863 6 110 52 155 62 82 2000 4500 0,01

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
