Revolving tube centre BASIC, MT 4 / 160

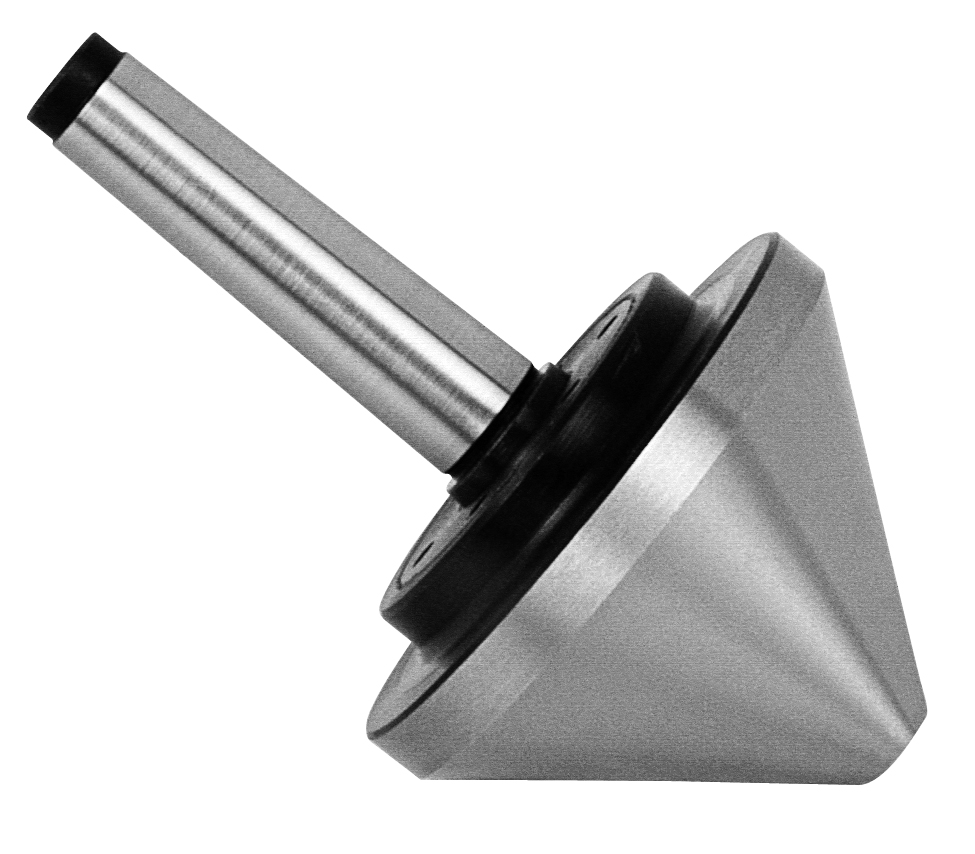

Preview: Revolving tube centre BASIC, MT 4 / 160 Preview: Drawing Revolving tube centre BASIC, MT 4 / 160
Revolving tube centre BASIC, MT 4 / 160

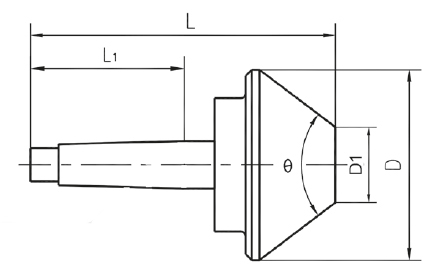

Drawing Revolving tube centre BASIC, MT 4 / 160

€147.24 *
€175.22 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-MLZK-4/160
  • Customs tariff number: 8466 2091
  • European article number: 4049794059142
  • Weight: 10,5 kg
  • In stock: 3
Description Technical data Product Safety Information Evaluations 0
Description
Revolving tube centre, BASIC type MLZK - MT 4 - D 160 mm more
Close menu
Product information "Revolving tube centre BASIC, MT 4 / 160"

Revolving tube centre, BASIC type MLZK

- MT 4
- D 160 mm

Related links to "Revolving tube centre BASIC, MT 4 / 160"
Technical data
MK / MT D mm D1 mm L mm L1 mm Winkel / Angle Drehzahl / Speed max. Werkstück... more
Zurück
MK /
MT		 D
mm		 D1
mm		 L
mm		 L1
mm		 Winkel /
Angle		 Drehzahl /
Speed max.		 Werkstück /
Work piece max. kg
2 60 20 132 64 60° 4000 200
3 100 30 170 81 60° 3000 600
4 160 40 232 102,5 60° 1900 800
5 200 40 252 129,5 60° 1500 1600
5 250 57 281 129,5 60° 1300 1800
6 250 57 355 181 60° 1200 2000

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
