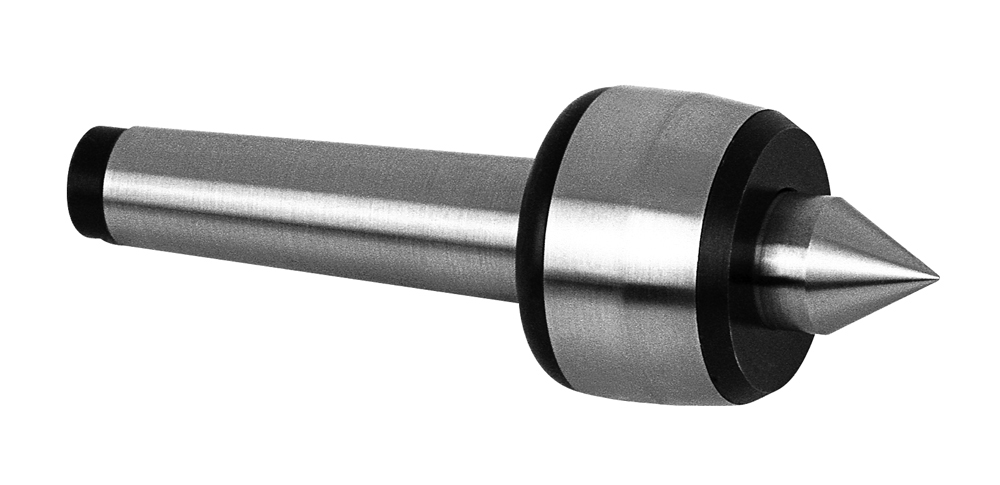

Revolving tailstock centre, BASIC type MLK, MT 5

Preview: Revolving tailstock centre, BASIC type MLK, MT 5 Preview: Drawing Revolving tailstock centre, BASIC type MLK, MT 5
Revolving tailstock centre, BASIC type MLK, MT 5

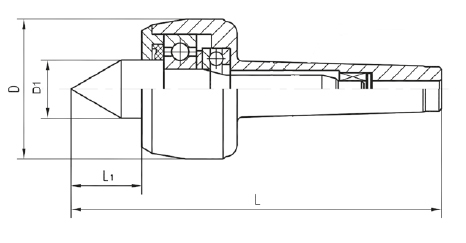

Drawing Revolving tailstock centre, BASIC type MLK, MT 5

€126.86 *
€150.96 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-MLK-05
  • Customs tariff number: 8466 2091
  • European article number: 4049794662175
  • Weight: 4,4 kg
  • In stock: 14
Description Technical data Product Safety Information Evaluations 0
Description
Revolving tailstock centre, BASIC type MLK - MT 5 more
Close menu
Product information "Revolving tailstock centre, BASIC type MLK, MT 5"

Revolving tailstock centre, BASIC type MLK

- MT 5

Related links to "Revolving tailstock centre, BASIC type MLK, MT 5"
Technical data
MK / MT D mm L mm L1 mm D1 mm Winkel / Angle Drehzahl / Speed max. Werkstück... more
Zurück
MK /
MT		 D
mm		 L
mm		 L1
mm		 D1
mm		 Winkel /
Angle		 Drehzahl /
Speed max.		 Werkstück /
Work piece max. kg
1 36 114 17 15 60° 7000 100
2 45 129 24 20 60° 7000 200
3 60 160,5 31 25 60° 5000 500
4 70 205 41 32 60° 3800 800
5 90 258,5 50,5 40 60° 3000 2000
6 105 334 57,5 50 60° 2600 3500

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
