NC precision power vice type MC2-200

Preview: NC precision power vice type MC2-200 Preview: Drawing 1 NC precision power vice type MC2-200 Preview: Drawing 2 NC precision power vice type MC2-200
NC precision power vice type MC2-200

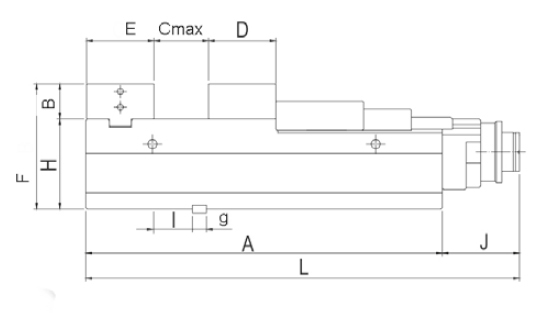

Drawing 1 NC precision power vice type MC2-200
Drawing 2 NC precision power vice type MC2-200

€1,722.89 *
€2,050.24 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-MC2-200
  • Customs tariff number: 8466 2098
  • European article number: 4049794008508
  • Weight: 94 kg
  • In stock: 3
Description Technical data Product Safety Information Evaluations 0
Description
NC precision power vice MC2-200 - high-power vice with mechanical force itensifier - body... more
Close menu
Product information "NC precision power vice type MC2-200"

NC precision power vice MC2-200

- high-power vice with mechanical force itensifier
- body made from cast iron FCD 65, jaws made from steel
- ground below and side-ways
- "Anti-lifting" mechanism
- integrated pull down
- mechanical force increase, no seals required
- short body
- pre-selection of clamping force
- incl. 4 clamping brackets, eye bolts, keys and t-nuts

Type: High-power vices
Jaw width: 200 mm
Type: mechanically
Clamping capacity: 300 mm
Make: Zentra
Related links to "NC precision power vice type MC2-200"
Technical data
Vorwahlstufe / Pre-selection Spannkraft Typ 125 / Clamping force type 125 Spannkraft... more
Zurück
Vorwahlstufe /
Pre-selection		 Spannkraft Typ 125 /
Clamping force type 125		 Spannkraft Typ 160 /
Clamping force type 160		 Spannkraft Typ 200 /
Clamping force type 200
0   500 daN   500 daN   500 daN
1 1100 daN 1300 daN 1500 daN
2 2500 daN 2700 daN 3200 daN
3 3700 daN 4000 daN 5100 daN
4 5000 daN 5400 daN 6800 daN




Typ MC2 /
Type MC2		 A
mm		 F
mm		 E
mm		 D
mm		 Cmax
mm		 B
mm		 g
mm		 H
mm		 I
mm		 J
mm		 K
mm		 L
mm		 W
mm		 N
mm		 kg
125 365 145 78 74 208 45 18 100 57 98,5 126 463,5 125 135 35
160 455 160 86 86 275 45 18 115 49 98,5 162 553,5 160 171 57
160M 480 160 86 86 300 45 18 115 49 98,5 162 578,5 160 174 63
200 505 180 100 97 300 55 18 125 66 100 202 603,5 200 211 90

Inkl. 4 Spannpratzen, Hebeösen, Schlüssel und Nutensteine
Incl. 4 clamping brackets, eye bolts, keys and t-nuts

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
