Tailstock Bison type 5819-95-130
Product number:
375819020400
Customs tariff number
84663000
European Article Number
Weight
12 kg
Stock:
0
Related links:
Request Item
Product information "Tailstock Bison type 5819-95-130"

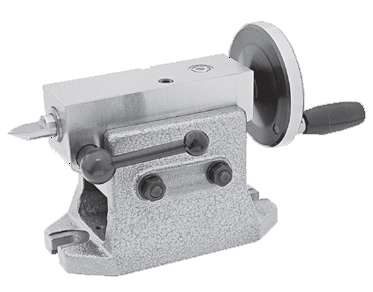

Tailstock Bison, type 5819-95-130
- designed for use with indexing fixtures,
rotary tables and diving heads
- height is precisely adjusted by means of a screw,
and after the adjustment, the spindle is locked in
a vertical position

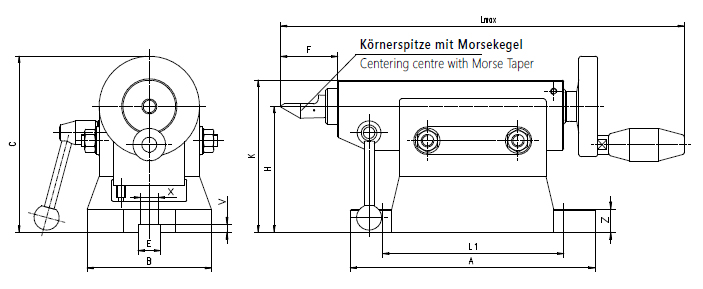

Technical Data
| Typ / Type |
A | B | C max. | E H7 | F min. | F max. | H min. | H max. | K | L max. | L1 | V | X | Z | MK / MT |
kg |
| 5819-95-130 | 195 | 100 | 183 | 18 | 40 | 70 | 95 | 130 | 155 | 335 | 165 | 6 | 14,0 | 16 / 18 | 2 | 12,0 |
| 5819-130-170 | 250 | 120 | 223 | 18 | 50 | 90 | 130 | 170 | 200 | 409 | 210 | 6 | 18,5 | 20 / 22 | 3 | 18,8 |
| 5819-170-200 | 280 | 142 | 253 | 18 | 50 | 90 | 170 | 200 | 230 | 433 | 240 | 6 | 18,5 | 23 / 25 | 3 | 25,5 |
| 5819-200-220 | 280 | 142 | 270 | 18 | 50 | 90 | 200 | 220 | 250 | 433 | 240 | 6 | 18,5 | 23 / 25 | 3 | 28,7 |
| 5819-220-250 | 300 | 164 | 303 | 18 | 60 | 100 | 220 | 250 | 285 | 465 | 260 | 6 | 18,5 | 23 / 25 | 4 | 43,0 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
