Set soft pie jaws for power chucks, type 206

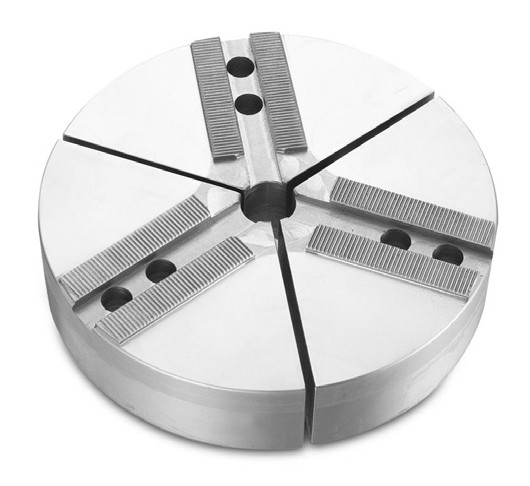

Preview: Set soft pie jaws for power chucks, type 206 Preview: Drawing Set soft pie jaws for power chucks, type 206
Set soft pie jaws for power chucks, type 206

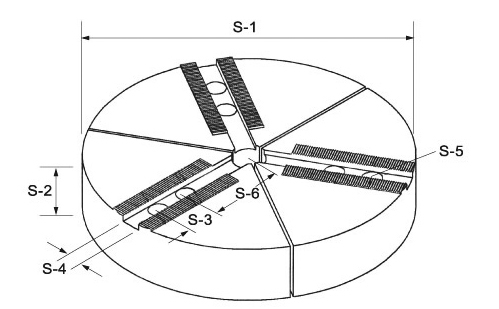

Drawing Set soft pie jaws for power chucks, type 206

€312.24 *
€371.57 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 29-SAB-06
  • Customs tariff number: 8466 2091
  • European article number: 4049794060537
  • Weight: 5,5 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Soft pie jaws for power chucks, Serration 1,5 x 60° - for chuck-type 206 - material:... more
Close menu
Product information "Set soft pie jaws for power chucks, type 206"

Soft pie jaws for power chucks,
Serration 1,5 x 60°

- for chuck-type 206
- material: steel
- suitable for thin-walled work pieces
- large clamping nearly the entire circumference of the work piece
- can be used as blanks for special jaws
- price per set

Related links to "Set soft pie jaws for power chucks, type 206"
Technical data
Für Futter Typ / For chuck type S-1 mm S-2 mm S-3 mm S-4 mm... more
Zurück
Für Futter Typ /
For chuck type		 S-1
mm		 S-2
mm		 S-3
mm		 S-4
mm		 S-5
mm		 S-6
mm		 Durchgang /
Thru hole mm		 Verzahnung /
Serration mm
206 169 40 20 12 M10 49,5 25 1,5 x 60°
208 200 40 25 14 M12 51 25 1,5 x 60°
208 200 50 25 14 M12 51 25 1,5 x 60°
210 250 50 30 16 M12 65 25 1,5 x 60°
212 300 50 30 21 M16 81 25 1,5 x 60°

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
