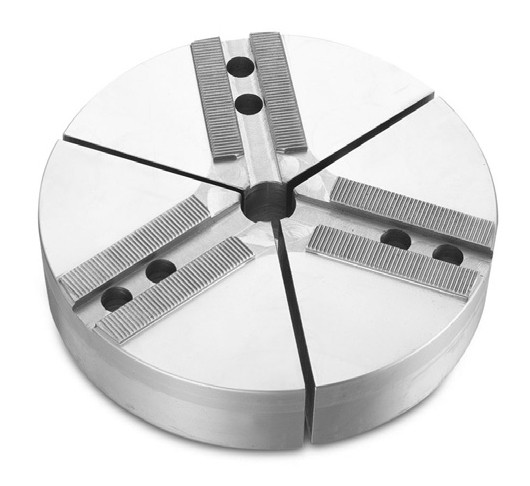

Set soft pie jaws for power chucks, type 208

Set soft pie jaws for power chucks, type 208

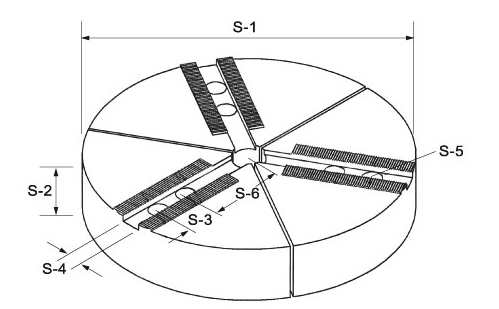

Drawing Set soft pie jaws for power chucks, type 208

€329.18 *

€391.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 29-SAB-08
Customs tariff number: 8466 2091
European article number: 4049794060544
Weight: 8,45 kg
In stock: 2

Soft pie jaws for power chucks, Serration 1,5 x 60° - for chuck-type 208 - material:... more

Close menu

Product information "Set soft pie jaws for power chucks, type 208"

Soft pie jaws for power chucks,
Serration 1,5 x 60°

- for chuck-type 208
- material: steel
- suitable for thin-walled work pieces
- large clamping nearly the entire circumference of the work piece
- can be used as blanks for special jaws
- price per set

Related links to "Set soft pie jaws for power chucks, type 208"

Für Futter Typ / For chuck type S-1 mm S-2 mm S-3 mm S-4 mm... more

Zurück

Für Futter Typ / For chuck type	S-1 mm	S-2 mm	S-3 mm	S-4 mm	S-5 mm	S-6 mm	Durchgang / Thru hole mm	Verzahnung / Serration mm
206	169	40	20	12	M10	49,5	25	1,5 x 60°
208	200	40	25	14	M12	51	25	1,5 x 60°
208	200	50	25	14	M12	51	25	1,5 x 60°
210	250	50	30	16	M12	65	25	1,5 x 60°
212	300	50	30	21	M16	81	25	1,5 x 60°

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
