Stationary cross table type MF-100

Preview: Stationary cross table type MF-100 Preview: Drawing Stationary cross table type MF-100

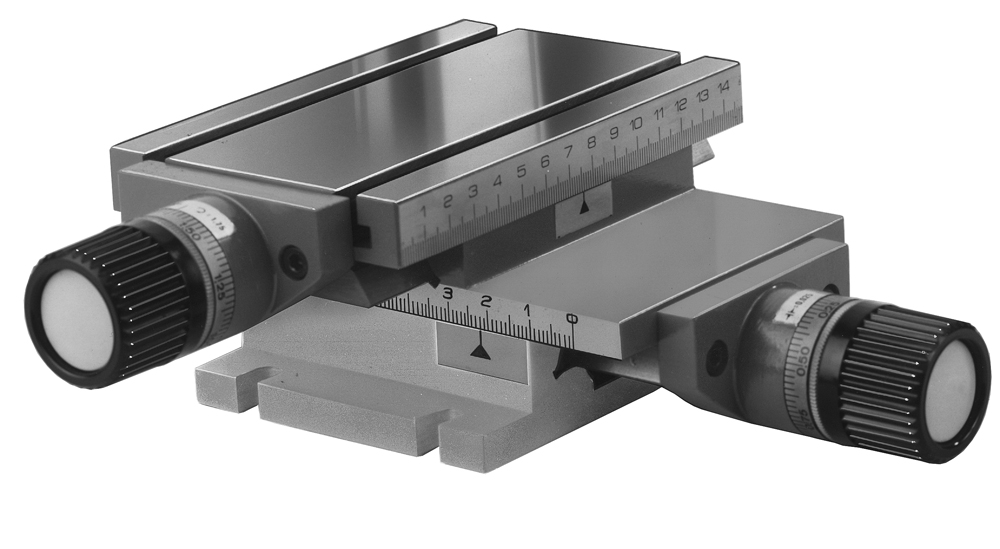

Stationary cross table type MF-100

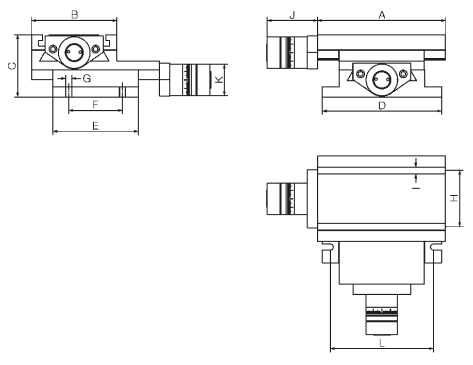

Drawing Stationary cross table type MF-100

€889.92 *
€1,059.00 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 18-MF-100
  • Customs tariff number: 8466 3000
  • European article number: 4049794025871
  • Weight: 6,6 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Stationary cross table with 2 axis, BAZUS type MF-100 - designed for fine mechanics or... more
Close menu
Product information "Stationary cross table type MF-100"

Stationary cross table with 2 axis,
BAZUS type MF-100

- designed for fine mechanics or laboratory
  applications
- X-Travel: 50 mm
- Y-Travel: 50 mm
- max. weight of work piece: 40 kg
- max. pressure: 250 kg

Size: 150 x 100 mm

Related links to "Stationary cross table type MF-100"
Technical data
Typ / Type A mm B mm C mm D mm E mm F mm H mm I mm J mm K mm L mm... more
Zurück
Typ /
Type		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 H
mm		 I
mm		 J
mm		 K
mm		 L
mm		 T-Nuten /
T-nuts
MF-100 150 100 73 140 100 63 66 8 60 37 121 2
MF-200 200 100 85 140 100 63 66 8 60 37 121 2



Typ /
Type		 X-Verfahrweg /
X-Travel mm		 Y-Verfahrweg /
Y-Travel mm		 Auflösung /
Revolution mm		 Gewindesteigung /
Thread lead		 Max. Werkstückgewicht /
Max. weight of work piece kg		 Max. Arbeitsdruck /
Max. pressure kg		 kg
MF-100 50 50 0,025 P-1,75 40 250 6
MF-200 100 100 0,025 P-1,75 40 250 6,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
