Rotating cross table type MG-100

Preview: Rotating cross table type MG-100 Preview: Drawing Rotating cross table type MG-100

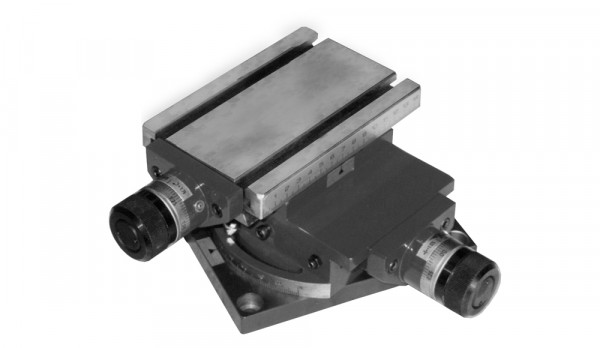

Rotating cross table type MG-100

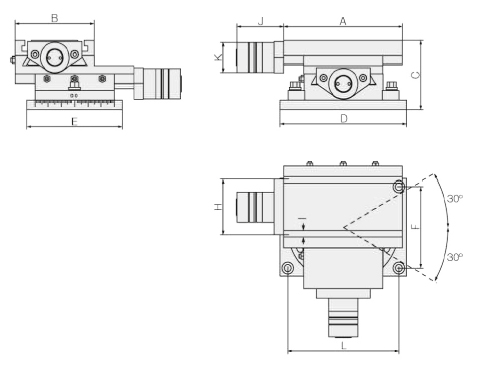

Drawing Rotating cross table type MG-100

Price on request

Prices plus VAT plus shipping costs

Delivery time upon request
Request price now
  • Order number: 18-MG-100
  • Customs tariff number: 8466 3000
  • European article number: 4049794025901
  • Weight: 8,1 kg
  • In stock: 2
Description Technical data Product Safety Information Evaluations 0
Description
Rotating cross table with 2 axis, BAZUS type MG-100 - designed for fine mechanics or... more
Close menu
Product information "Rotating cross table type MG-100"

Rotating cross table with 2 axis,
BAZUS type MG-100

- designed for fine mechanics or laboratory
  applications
- identical to MF MINI, but with the possibility
  of performing ± 30° rotation
- X-Travel: 50 mm
- Y-Travel: 50 mm
- max. weight of work piece: 45 kg
- max. pressure: 255 kg

Size: 150 x 100 mm

Related links to "Rotating cross table type MG-100"
Technical data
Typ / Type A mm B mm C mm D mm E mm F mm H... more
Zurück
Typ /
Type		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 H
mm		 I
mm		 J
mm		 K
mm		 L
mm		 T-Nuten /
T-nuts
MG-100 150 100 85 160 120 100 66 8 60 37 140 2



Typ /
Type		 X-Verfahrweg /
X-Travel mm		 Y-Verfahrweg /
Y-Travel mm		 Auflösung /
Revolution mm		 Gewindesteigung /
Thread lead		 Max. Werkstückgewicht /
Max. weight of work piece kg		 Max. Arbeitsdruck /
Max. pressure kg		 kg
MG-100 50 50 0,025 P-1,75 45 255 7

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
