Soft top jaws for Bison chuck type 3474-315

€155.25 *
€184.75 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398531070900
  • 84662091
  • 5,4 kg
  • 0
Soft top jaws for Bison self-centering wedge bar chuck type 3474-315 - material: steel - 3... more
Product information "Soft top jaws for Bison chuck type 3474-315"

Soft top jaws for Bison
self-centering wedge bar chuck type 3474-315

- material: steel
- 3 pieces/set

Related links to "Soft top jaws for Bison chuck type 3474-315"

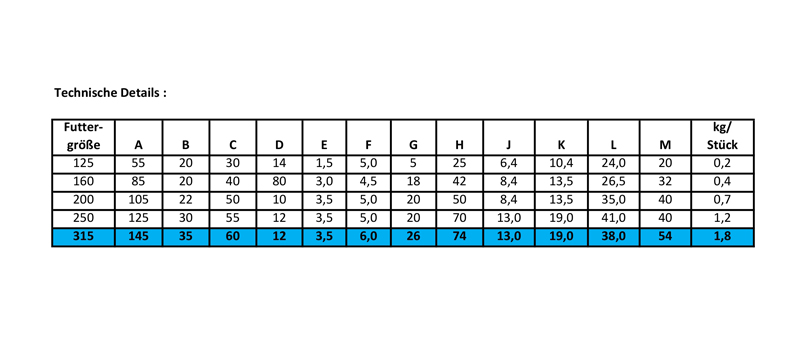

Futtergröße / Chuck size A B C D E F G H J K L M kg pro Stück /... more
Futtergröße /
Chuck size
A B C D E F G H J K L M kg pro Stück /
kg per piece
125 55 20 30 14 1,5 5,0 5 25 6,4 10,4 24,0 20 0,2
160 85 20 40 8 3,0 4,5 18 42 8,4 13,5 26,5 32 0,4
200 105 22 50 10 3,5 5,0 20 50 8,4 13,5 35,0 40 0,7
250 125 30 55 12 3,5 5,0 20 70 13,0 19,0 41,0 40 1,2
315 145 35 60 12 3,5 6,0 26 74 13,0 19,0 38,0 54 1,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
