Stationary cross table type MF-1

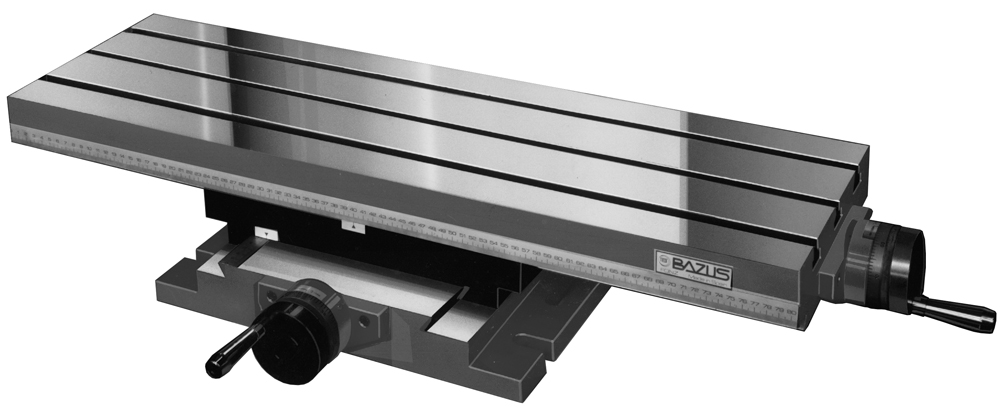

Preview: Stationary cross table type MF-1 Preview: Drawing Stationary cross table type MF-1
Stationary cross table type MF-1

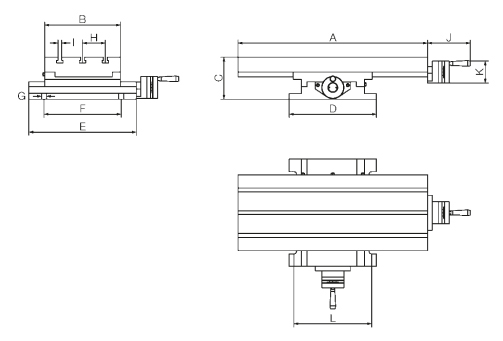

Drawing Stationary cross table type MF-1

Price on request

Prices plus VAT plus shipping costs

Delivery time upon request
Request price now
  • Order number: 18-MF-1
  • Customs tariff number: 8466 3000
  • European article number: 4049794025703
  • Weight: 42 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Stationary cross table with 2 axes, BAZUS type MF-1 - X-Travel: 190 mm - Y-Travel: 130... more
Close menu
Product information "Stationary cross table type MF-1"

Stationary cross table with 2 axes,
BAZUS type MF-1

- X-Travel: 190 mm
- Y-Travel: 130 mm
- max. weight of work piece: 105 kg
- max. pressure: 700 kg

Size: 330 x 220 mm



Related links to "Stationary cross table type MF-1"
Technical data
Typ / Type A mm B mm C mm D mm E mm F mm G mm H mm I mm J mm K mm... more
Zurück
Typ /
Type		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 I
mm		 J
mm		 K
mm		 L
mm		 T-Nuten /
T-nuts
MF-0 230 164 101 225 225 160 12 50 10 56 56 191 3
MF-1 330 220 125 256 280 210 16 67 12 137 70 210 3
MF-2 430 240 132 276 340 244 16 72 12 135 70 246 3



Typ /
Type		 X-Verfahrweg /
X-Travel mm		 Y-Verfahrweg /
Y-Travel mm		 Auflösung /
Revolution mm		 Gewindesteigung /
Thread lead		 Max. Werkstückgewicht /
Max. weight of work piece kg		 Max. Arbeitsdruck /
Max. pressure kg		 kg
MF-0 120 110 0,05 2 55 500 16
MF-1 190 130 0,05 4 105 700 33
MF-2 240 160 0,05 4 270 900 46

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
