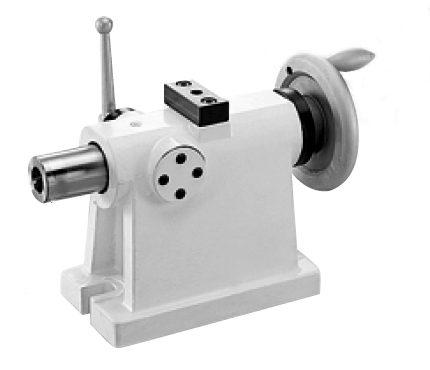

Tailstock type RSF-160

Preview: Tailstock type RSF-160 Preview: Drawing Tailstock type RSF-160
Tailstock type RSF-160

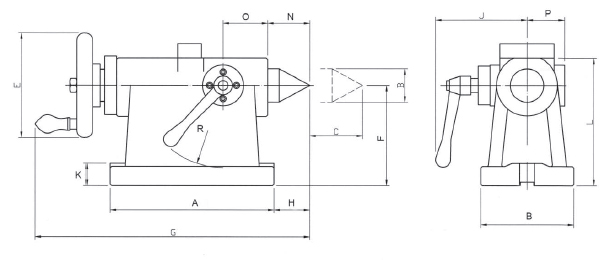

Drawing Tailstock type RSF-160

€657.43 *
€782.34 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-RSF-160
  • Customs tariff number: 8466 3000
  • European article number: 4049794060742
  • Weight: 23 kg
  • In stock: 7
Description Technical data Evaluations 0
Description
Tailstock RSF-160 for fixing fixtures and rotary tables - high precision type - wth quill... more
Close menu
Product information "Tailstock type RSF-160"

Tailstock RSF-160 for fixing fixtures and rotary tables

- high precision type
- wth quill MT 3
- without height adjustment

Related links to "Tailstock type RSF-160"
Technical data
F mm MK / MT C mm D mm E mm A mm B mm G mm H mm K mm 135 3 55... more
Zurück
F
mm		 MK /
MT		 C
mm		 D
mm		 E
mm		 A
mm		 B
mm		 G
mm		 H
mm		 K
mm
135 3 55 Ø 14 125 215 120 332 25 25
160 3 55 Ø 18 140 230 130 356 30 30
210 3 55 Ø 18 140 230 146 356 30 30

J
mm		 L
mm		 M
mm		 N
mm		 O
mm		 P
mm		 Q
mm		 R
mm		 Nut (g) /
Slot (g) mm		 kg
109 164 19 40 69 44 70 80 18 21
129 193 19 45 70 52 80 95 18 23
129 243 23 45 70 52 80 95 18 29,4

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
