Tailstock Bison type 5819-130-170

Preview: Tailstock Bison type 5819-130-170 Preview: Drawing Tailstock Bison type 5819-130-170
Tailstock Bison type 5819-130-170

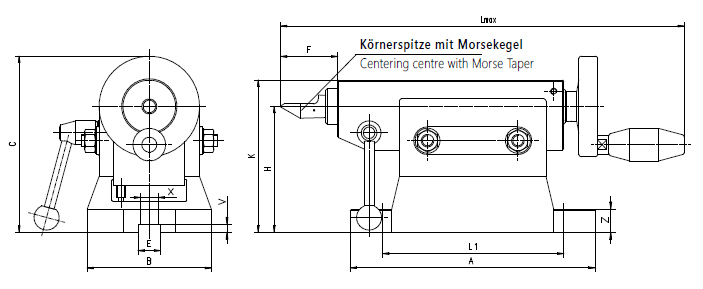

Drawing Tailstock Bison type 5819-130-170

€1,191.20 *
€1,417.53 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 375819030600
  • Customs tariff number: 84663000
  • European article number:
  • Weight: 18,8 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Tailstock Bison, type 5819-130-170 - designed for use with indexing fixtures,  ... more
Close menu
Product information "Tailstock Bison type 5819-130-170"

Tailstock Bison, type 5819-130-170

- designed for use with indexing fixtures,
  rotary tables and diving heads
- height is precisely adjusted by means of a screw,
  and after the adjustment, the spindle is locked in
  a vertical position

Related links to "Tailstock Bison type 5819-130-170"
Technical data
Typ / Type A B C max. E H7 F min. F max. H min. H max.... more
Zurück
Typ /
Type		 A B C max. E H7 F min. F max. H min. H max. K L max. L1 V X Z MK /
MT		 kg
5819-95-130 195 100 183 18 40 70 95 130 155 335 165 6 14,0 16 / 18 2 12,0
5819-130-170 250 120 223 18 50 90 130 170 200 409 210 6 18,5 20 / 22 3 18,8
5819-170-200 280 142 253 18 50 90 170 200 230 433 240 6 18,5 23 / 25 3 25,5
5819-200-220 280 142 270 18 50 90 200 220 250 433 240 6 18,5 23 / 25 3 28,7
5819-220-250 300 164 303 18 60 100 220 250 285 465 260 6 18,5 23 / 25 4 43,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
