- Order number: 375818070500
- Customs tariff number: 84663000
- European article number:
- Weight: 23,1 kg
- In stock: 0
Tailstock Bison, type 5818-250
- designed for use with indexing fixtures, rotary... more

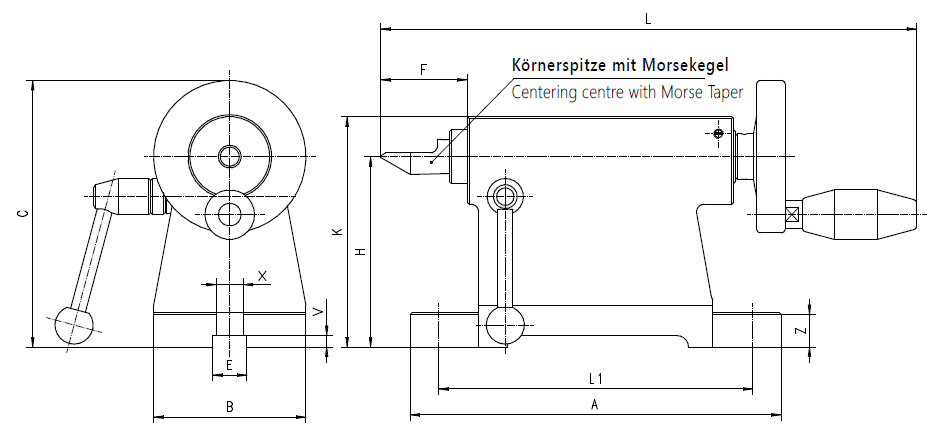

Product information "Tailstock Bison type 5818-250"
Tailstock Bison, type 5818-250
- designed for use with indexing fixtures,
rotary tables and diving heads
- without height adjustment
Related links to "Tailstock Bison type 5818-250"
Typ / Type
A
B
C
E
F min.
F max.
H
K
L
L1
V
X
Z
MK / MT
kg... more
Typ / Type |
A | B | C | E | F min. | F max. | H | K | L | L1 | V | X | Z | MK / MT |
kg |
5818-80 | 164 | 68 | 120 | 18 | 26,0 | 44,0 | 80 | 95 | 244 | 134 | 6 | 14 | 14,5 | 1 | 2,5 |
5818-100 | 195 | 80 | 140 | 18 | 33,0 | 63,0 | 100 | 121 | 299 | 165 | 6 | 14 | 18,0 | 2 | 6,1 |
5818-125 | 195 | 90 | 178 | 18 | 39,0 | 69,0 | 125 | 146 | 315 | 165 | 6 | 14 | 18,0 | 2 | 7,4 |
5818-160 | 250 | 115 | 213 | 18 | 48,0 | 85,0 | 160 | 187 | 366 | 210 | 6 | 18 | 18,0 | 3 | 12,7 |
5818-200 | 275 | 130 | 253 | 18 | 59,5 | 99,5 | 200 | 233 | 420 | 235 | 6 | 18 | 20,0 | 4 | 17,9 |
5818-250 | 280 | 150 | 303 | 18 | 59,5 | 99,5 | 250 | 283 | 420 | 240 | 6 | 18 | 23,0 | 4 | 23,1 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
