Tailstock Bison type 5818-160

Preview: Tailstock Bison type 5818-160 Preview: Drawing Tailstock Bison type 5818-160
Tailstock Bison type 5818-160

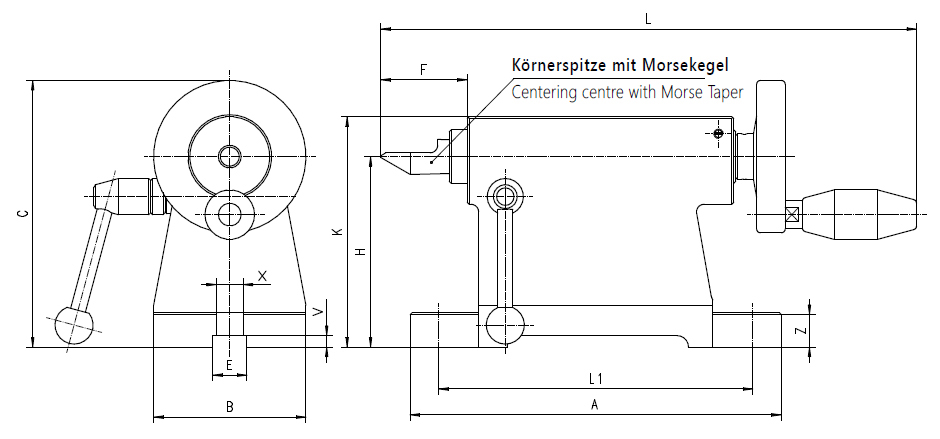

Drawing Tailstock Bison type 5818-160

€644.00 *
€766.36 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 375818050100
  • Customs tariff number: 84663000
  • European article number:
  • Weight: 12,7 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Tailstock Bison, type 5818-160 - designed for use with indexing fixtures,   rotary... more
Close menu
Product information "Tailstock Bison type 5818-160"

Tailstock Bison, type 5818-160

- designed for use with indexing fixtures,
  rotary tables and diving heads
- without height adjustment

Related links to "Tailstock Bison type 5818-160"

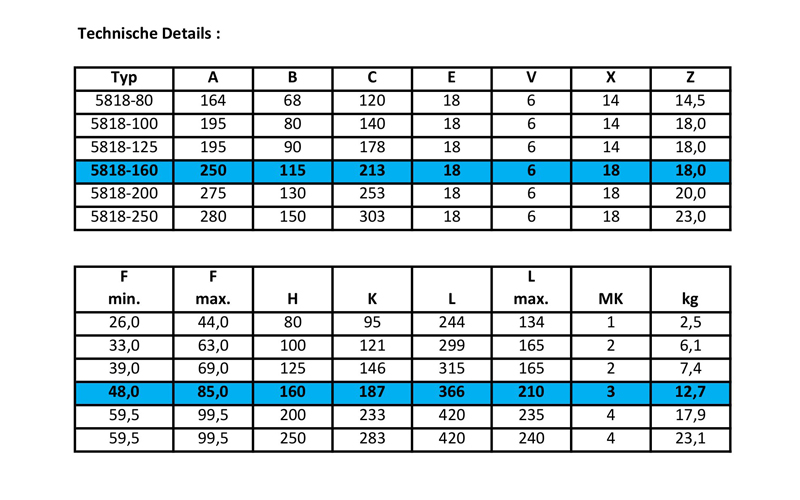

Technical data
Typ / Type A B C E F min. F max. H K L L1 V X Z MK / MT kg... more
Zurück
Typ /
Type		 A B C E F min. F max. H K L L1 V X Z MK /
MT		 kg
5818-80 164 68 120 18 26,0 44,0 80 95 244 134 6 14 14,5 1 2,5
5818-100 195 80 140 18 33,0 63,0 100 121 299 165 6 14 18,0 2 6,1
5818-125 195 90 178 18 39,0 69,0 125 146 315 165 6 14 18,0 2 7,4
5818-160 250 115 213 18 48,0 85,0 160 187 366 210 6 18 18,0 3 12,7
5818-200 275 130 253 18 59,5 99,5 200 233 420 235 6 18 20,0 4 17,9
5818-250 280 150 303 18 59,5 99,5 250 283 420 240 6 18 23,0 4 23,1

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
