Tailstock Bison type 5818-80

Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • 375818020600
  • 84663000
  • 1
  • 2,5 kg
  • 0
Tailstock Bison, type 5818-80 - designed for use with indexing fixtures,   rotary... more
Product information "Tailstock Bison type 5818-80"

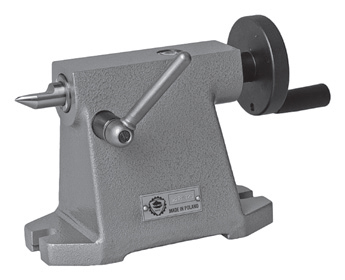

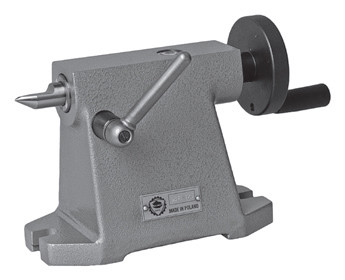

Tailstock Bison, type 5818-80

- designed for use with indexing fixtures,
  rotary tables and diving heads
- without height adjustment

Related links to "Tailstock Bison type 5818-80"

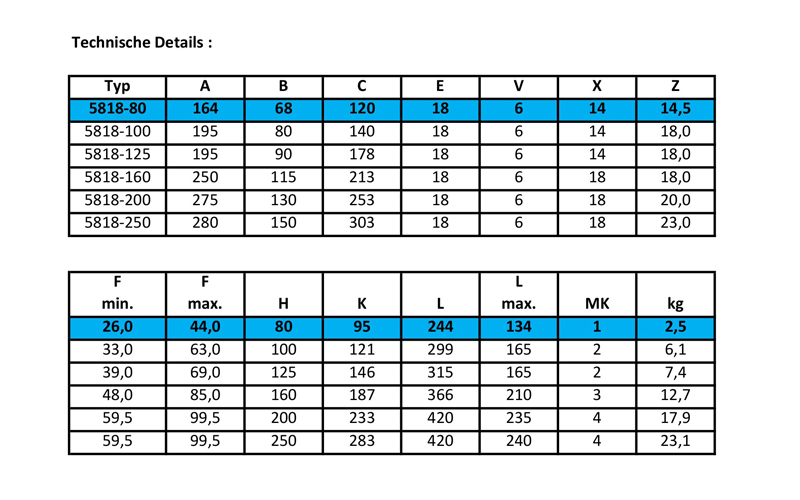

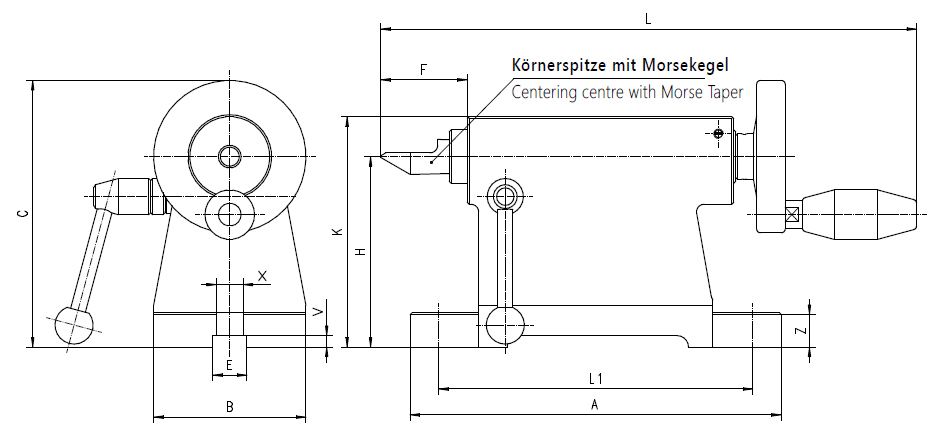

Typ / Type A B C E F min. F max. H K... more
Typ /
Type
A B C E F min. F max. H K L L1 V X Z MK /
MT
kg
5818-80 164 68 120 18 26,0 44,0 80 95 244 134 6 14 14,5 1 2,5
5818-100 195 80 140 18 33,0 63,0 100 121 299 165 6 14 18,0 2 6,1
5818-125 195 90 178 18 39,0 69,0 125 146 315 165 6 14 18,0 2 7,4
5818-160 250 115 213 18 48,0 85,0 160 187 366 210 6 18 18,0 3 12,7
5818-200 275 130 253 18 59,5 99,5 200 233 420 235 6 18 20,0 4 17,9
5818-250 280 150 303 18 59,5 99,5 250 283 420 240 6 18 23,0 4 23,1

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
