Chuck adaptor Ø 160 mm for MT-base body

€562.90 *
€669.85 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 13-FFL-160
  • 8466 2091
  • 4049794073124
  • 4,2 kg
  • 2
Chuck adaptor Ø 160 mm for MT-base body, type FFL - for mounting of chucks according to DIN... more
Product information "Chuck adaptor Ø 160 mm for MT-base body"

Chuck adaptor Ø 160 mm for MT-base body, type FFL

- for mounting of chucks according to DIN 6350
- for base body type MGK / FGK

Related links to "Chuck adaptor Ø 160 mm for MT-base body"

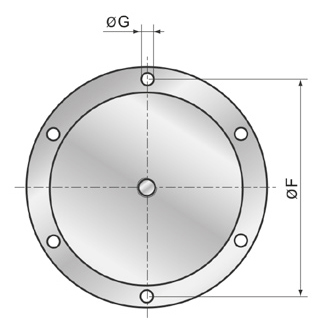

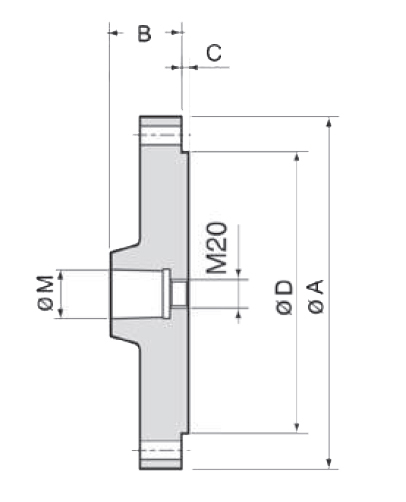

A mm M mm F mm G mm B mm C mm D mm 100 35 83 6,5 52,2 2,5 70... more
A
mm
M
mm
F
mm
G
mm
B
mm
C
mm
D
mm
100 35 83 6,5 52,2 2,5 70
160 35 140 11 51,5 3,5 125
200 35 176 11 50,5 3,5 160
250 35 224 13 50,5 4,5 200

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
