Spacing collars 16 x 2 mm, DIN 2084 B
Product number:
09-2084B162
Customs tariff number
8466 1020
European Article Number
4049794022184
Weight
0,01 kg
Stock:
67
Related links:
Request Item

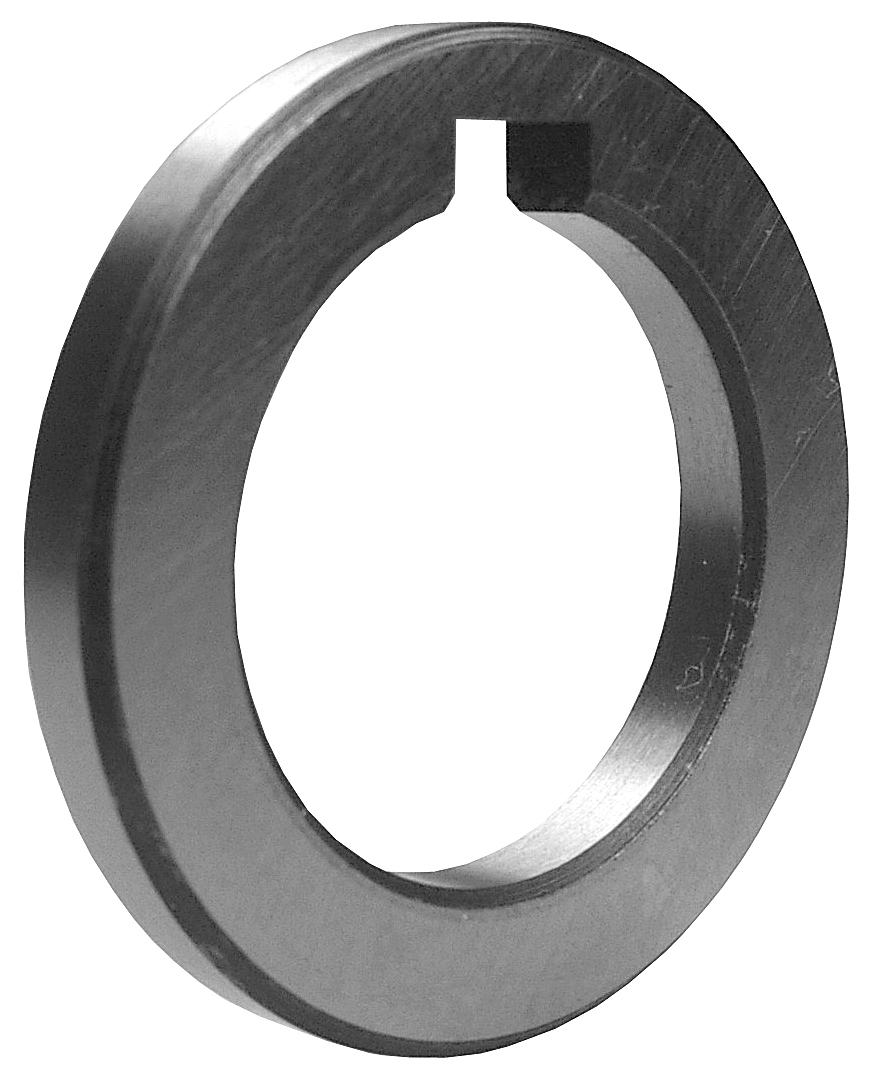

Product information "Spacing collars 16 x 2 mm, DIN 2084 B"
Spacing collars 16 mm, DIN 2084 B
- turned from steel, hardened, ground and lapped
- Bore-Ø: 16 mm, External-Ø: 27 mm
- Thickness: 2 mm
Technical Data
| Bohr-Ø / Bore-Ø |
13 | 16 | 22 | 27 | 32 | 40 | 50 | 60 | |
| Außen-Ø / External-Ø |
22 | 27 | 34 | 41 | 47 | 55 | 69 | 83 | |
| Stärke / Thickness mm |
1 | - | - | - | - | - | - | - | |
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||
| 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
| 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||
| 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
| - | 60 | 60 | 60 | 60 | 60 | - | - | ||
| - | - | 100 | 100 | 100 | 100 | - | - | ||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
