Simple indexing spacer, type 165

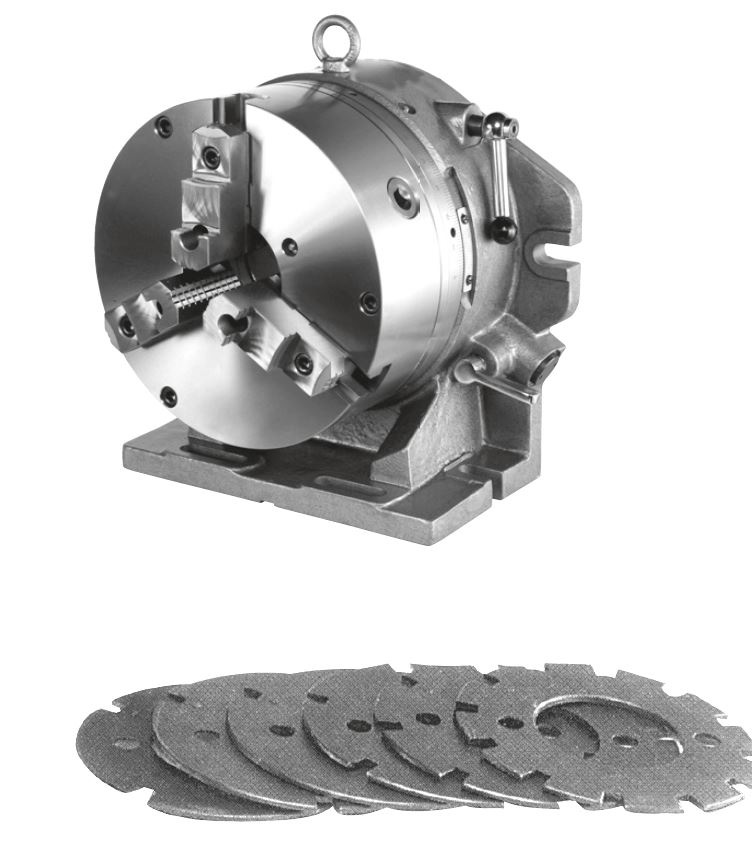

Preview: Simple indexing spacer, type 165 Preview: Drawing Simple indexing spacer, type 165
Simple indexing spacer, type 165

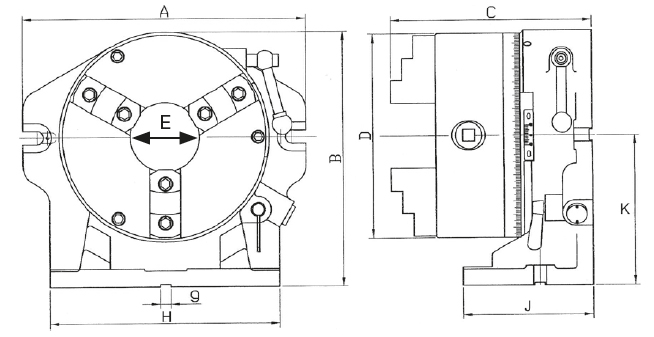

Drawing Simple indexing spacer, type 165

€585.72 *
€697.01 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-TA-165
  • Customs tariff number: 8466 3000
  • European article number: 4049794053836
  • Weight: 29 kg
  • In stock: 8
Description Technical data Product Safety Information Evaluations 0
Description
Simple indexing spacer, clamping range 3-160 mm - for horizontal and vertical applications... more
Close menu
Product information "Simple indexing spacer, type 165"

Simple indexing spacer, clamping range 3-160 mm

- for horizontal and vertical applications
- easy of handling
- incl. lathe chuck and masking plates
  in 2, 3, 4, 6, 8, 12, 24 sections adjustable

Related links to "Simple indexing spacer, type 165"
Technical data
Typ / Type Teilung / Division A mm B mm C mm D... more
Zurück
Typ /
Type		 Teilung /
Division		 A
mm		 B
mm		 C
mm		 D
mm		 H
mm		 J
mm		 K
mm		 Nut (g) /
Slot (g) mm		 Spannbereich /
Clamp. Range		 E
mm		 kg
165 2-24 253 225 179 160 187 115 130 16 3-160 44 30
200 2-24 318 274 209 200 230 157 157 16 4-200 58 52
310 2-48 432 388 315 315 350 228 228 16 10-315 105 163

Inkl. Dreibacken-Drehfutter und Rastplatten / Incl. 3-jaw lathe chuck and masking plates

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
