Precision rotary table MT 4, type 300

€533.81 *
€635.23 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-RT-300
  • 8466 3000
  • 4049794051313
  • 70 kg
  • 9
Precision rotary table type 300, MT 4 - for horizontal and vertical applications - ratio... more
Product information "Precision rotary table MT 4, type 300"

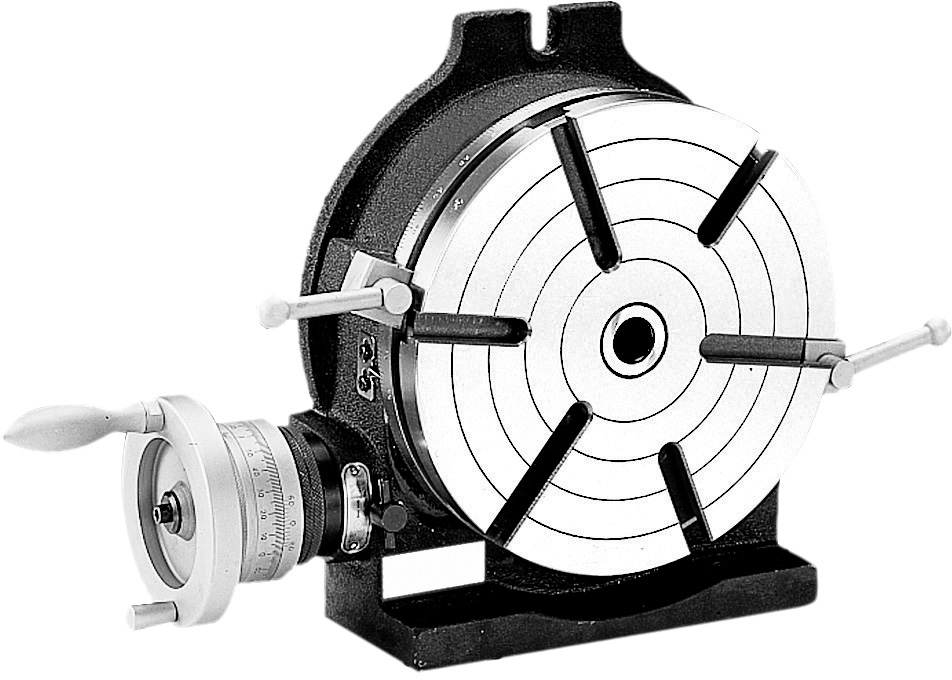

Precision rotary table type 300, MT 4

- for horizontal and vertical applications
- ratio 90:1
- 360° graduation, 1' graduation, with vernier 10'',
  feed 4° per rotation
- parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

Related links to "Precision rotary table MT 4, type 300"

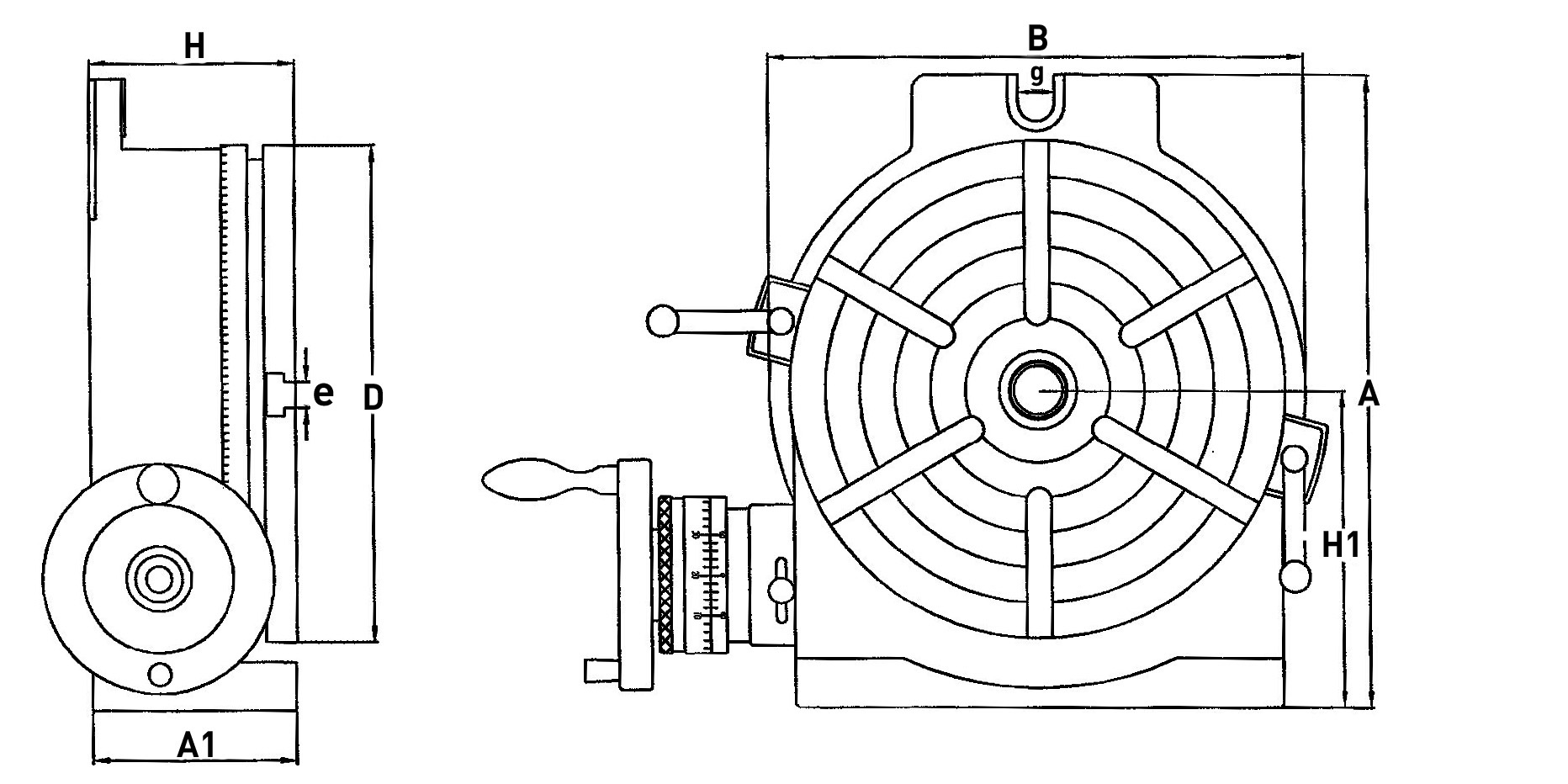

Typ / Type MK / MT A mm C mm B mm D mm e mm H mm J mm Nuten / Slots... more
Typ /
Type
MK /
MT
A
mm
C
mm
B
mm
D
mm
e
mm
H
mm
J
mm
Nuten /
Slots
Nut (g) /
Slot (g) mm
Max. Belastung Hor. /
Max. load cap. hor. kg
Max. Belastung Vert. /
Max. load cap. vert. kg
110 2 138 58 118 110 11 72 80 3  - 35 18
150 2 205 78 163 150 11 80 102 3 17 40 20
200 3 265 100 219 205 14 102 135 3 17 80 40
250 3 321 106 276 254 14 109 163 6 17 90 50
300 4 388 123 330 305 16 125 194 6 17 120 60
350 4 445 123 389 353 16 125 225 6 17 130 70
406 4 503 128 435 406 16 130 255 6 17 140 70

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
