Boring head set, capacity Ø 8 mm - 46 mm, SK 50

Boring head set, capacity Ø 8 mm - 46 mm, SK 50
€1,075.75 *
€1,280.14 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 09-AKS1-SK50
  • 8466 1038
  • 4049794061459
  • 8,9 kg
  • 0
Boring head set, boring capacity Ø  8 mm - 46 mm, SK 50 - type AKS 1, shank DIN 69871... more
Product information "Boring head set, capacity Ø 8 mm - 46 mm, SK 50"

Boring head set, boring capacity Ø 8 mm - 46 mm, SK 50

- type AKS 1, shank DIN 69871 SK 50
- scale 0,005 mm
- total stroke: 6 mm
- scope of delivery:
  - boring head
  - 8 boring bars Ø 16 mm
  - srews
  - setting tool

Related links to "Boring head set, capacity Ø 8 mm - 46 mm, SK 50"

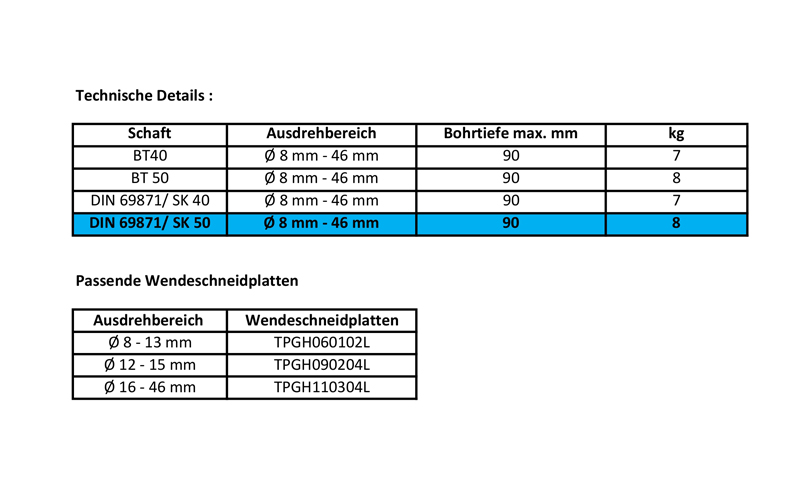

Schaft / Shank Bohrtiefe max. / Depth max. mm kg BT 40 90 7 BT 50 90... more
Schaft /
Shank
Bohrtiefe max. /
Depth max. mm
kg
BT 40 90 7
BT 50 90 8
DIN 69871 / SK 40 90 7
DIN 69871 / SK 50 90 8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved



Passende Wendeschneidplatten /
Suitable iserts

Ausdrehbereich /
Boring capacity
Wendeschneidplatten /
Inserts
Ø 8 – 13 mm TBGT060102L
Ø 12 – 15 mm TPGH090204L
Ø 16 – 46 mm TPGH110304 L
