Swivel angle plate type 5150-200x250

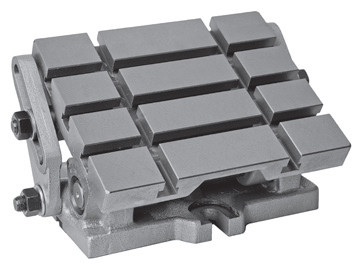

Preview: Swivel angle plate type 5150-200x250 Preview: Drawing Swivel angle plate type 5150-200x250
Swivel angle plate type 5150-200x250

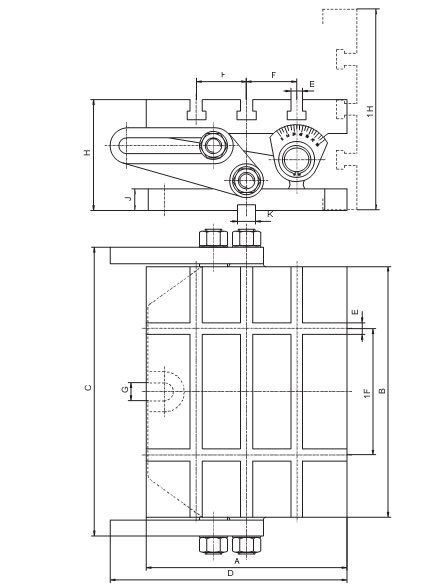

Drawing Swivel angle plate type 5150-200x250

€1,390.40 *
€1,654.58 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 375150010300
  • Customs tariff number: 84663000
  • European article number:
  • Weight: 21 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Swivel angle plate,  Bison type 5150 - dimensions (A x B): 200 x 250 mm - easily set... more
Close menu
Product information "Swivel angle plate type 5150-200x250"

Swivel angle plate, Bison type 5150

- dimensions (A x B): 200 x 250 mm
- easily set at any angle between horizontal and vertical plates
- the plate will accept accessories and workpieces larger than the table top

Related links to "Swivel angle plate type 5150-200x250"

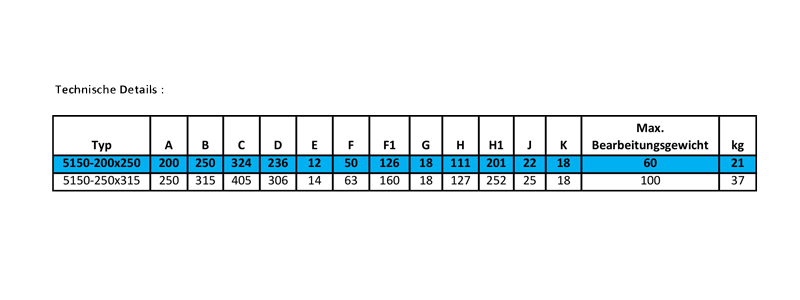

Technical data
Typ / Type A B C D E F F1 G H H1... more
Zurück
Typ /
Type		 A B C D E F F1 G H H1 J K Max. Bearbeitungsgewicht /
Max. working weight		 kg

5150-200x250 200 250 324 236 12 50 126 18 111 201 22 18 60 21
5150-250x315 250 315 405 306 14 63 160 18 127 252 25 18 100 37

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
