Independent chuck Bison type 4314-500-8

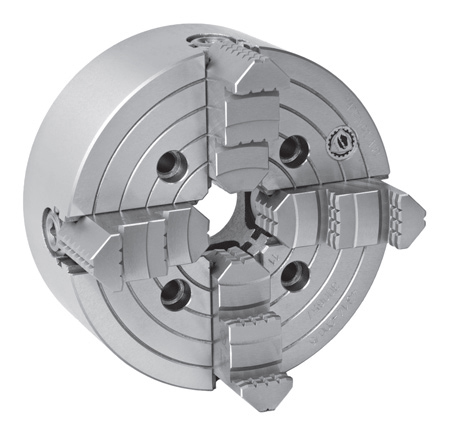

Preview: Independent chuck Bison type 4314-500-8 Preview: Drawing Independent chuck Bison type 4314-500-8
Independent chuck Bison type 4314-500-8

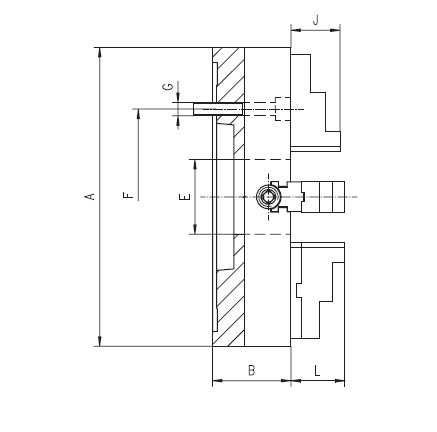

Drawing Independent chuck Bison type 4314-500-8

€4,042.50 *
€4,810.58 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 354314160500
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 114 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Independent chuck  Bison 4314-500-8 - DIN 55026, type A mounting - type 4314 Ø... more
Close menu
Product information "Independent chuck Bison type 4314-500-8"

Independent chuck Bison 4314-500-8

- DIN 55026, type A mounting
- type 4314 Ø 500 mm, taper 8
- material of body: cast iron
- solid jaws
- with additional T-slots
- incl. 1 set of solid reversible jaws and 1 wrench

Taper: 8
Ø : 500 mm
DIN: 55026
Jaws: one-piece jaws
Material: Cast iron
Make: Bison
Related links to "Independent chuck Bison type 4314-500-8"
Technical data
A KK 1:4 / ST 1:4 B E F G J L kg 200 5 80 50 104,8 4xM10... more
Zurück
A KK 1:4 /
ST 1:4		 B E F G J L kg
200 5 80 50 104,8 4xM10 40,3 46,4 17,0
200 6 80 50 133,4 4xM12 40,3 46,4 17,0
250 6 85 65 133,4 4xM12 40,3 60,4 25,5
250 8 85 65 171,4 4xM16 40,3 60,4 25,5
315 6 95 80 133,4 8xM12 49,8 60,9 40,0
400 8 105 100 171,4 4xM16 49,8 72,3 65,0
400 11 105 100 235,0 4xM20 49,8 72,3 65,0
500 8 120 125 171,4 8xM16 59,8 97,8 114,0
500 11 120 125 235,0 8xM20 59,8 97,8 114,0
630 11 140 160 235,0 8xM20 59,8 97,8 165,0
630 15 140 160 330,2 4xM24 59,8 97,8 165,0

Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel /
Incl. 1 set of solid reversible jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
