Independent chuck DIN 55027, Ø 250 mm, Taper 5

€360.72 *
€429.26 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-4157-255
  • 8466 2091
  • 4049794048023
  • 27,85 kg
  • 0
Independent chuck DIN 55027, Ø 250 mm, Taper 5, one-piece jaws - chuck body made from cast... more
Product information "Independent chuck DIN 55027, Ø 250 mm, Taper 5"

Independent chuck DIN 55027, Ø 250 mm, Taper 5, one-piece jaws

- chuck body made from cast iron
- with 4 individually adjustable jaws
- especially suitable for holding irregulary
  shaped work pieces
- inkl. 1 set hardened reversible jaws,
  wrench, fixing screws

Related links to "Independent chuck DIN 55027, Ø 250 mm, Taper 5"

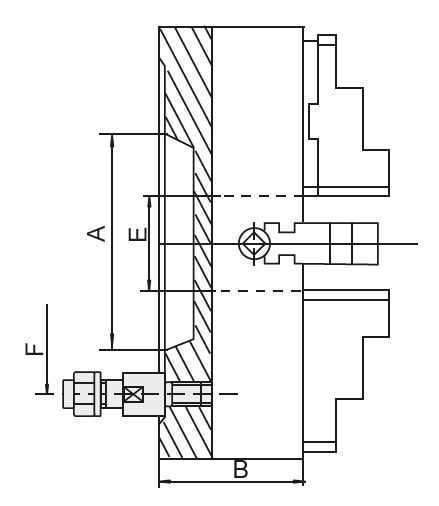

A (Ø) mm KK Taper B mm D mm E mm F mm RPM  MAX... more
A (Ø)
mm
KK
Taper
B
mm
D
mm
E
mm
F
mm
RPM MAX
min -1
kg
200 4 75 63,5 56 85 1800 10
200 5 75 82,6 56 104,8 1800 10
200 6 75 106,4 56 133,4 1800 10
250 5 85 82,6 65 104,8 1500 27,5
250 6 85 106,4 65 133,4 1500 27,5
250 8 85 139,7 65 171,4 1500 27,5
315 5 95 82,6 80 104,8 1200 39,5
315 6 95 106,4 80 133,4 1200 39,5
315 8 95 139,7 80 171,4 1200 39,5
315 11 95 196,9 80 235 1200 39,5
400 6 105 106,4 100 133,4 800 60
400 8 105 139,7 100 171,4 800 60
400 11 105 196,9 100 235 800 60
500 8 120 139,7 125 171,4 500 95,5
500 11 120 196,9 125 235 500 95,5
630 8 140 139,7 125 171,4 400 165
630 11 140 196,9 160 235 400 165
630 15 140 285,8 160 330,2 400 165
800 11 145 196,9 180 235 300 298
800 15 145 285,8 180 330,2 300 298

Inkl. je 1 Satz einteiliger Umkehrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set hardened reversible jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
