Screw-on type milling arbor SK40-M8-50 DIN 69871

€48.02 *
€57.14 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 13-FASK40-M8-50
  • 8466 1038
  • 4049794064863
  • 0,9 kg
  • 4
Screw-on type milling arbor DIN 69871, SK 40 - DIN 69871 - SK 40 - G: M8 - L: 50 mm more

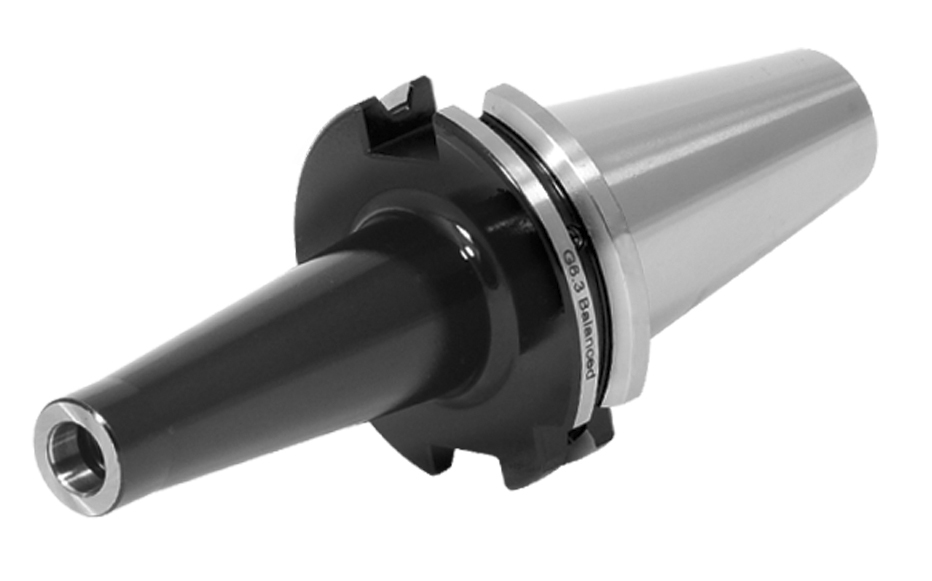

Product information "Screw-on type milling arbor SK40-M8-50 DIN 69871"

Screw-on type milling arbor DIN 69871, SK 40

- DIN 69871
- SK 40
- G: M8
- L: 50 mm

Related links to "Screw-on type milling arbor SK40-M8-50 DIN 69871"

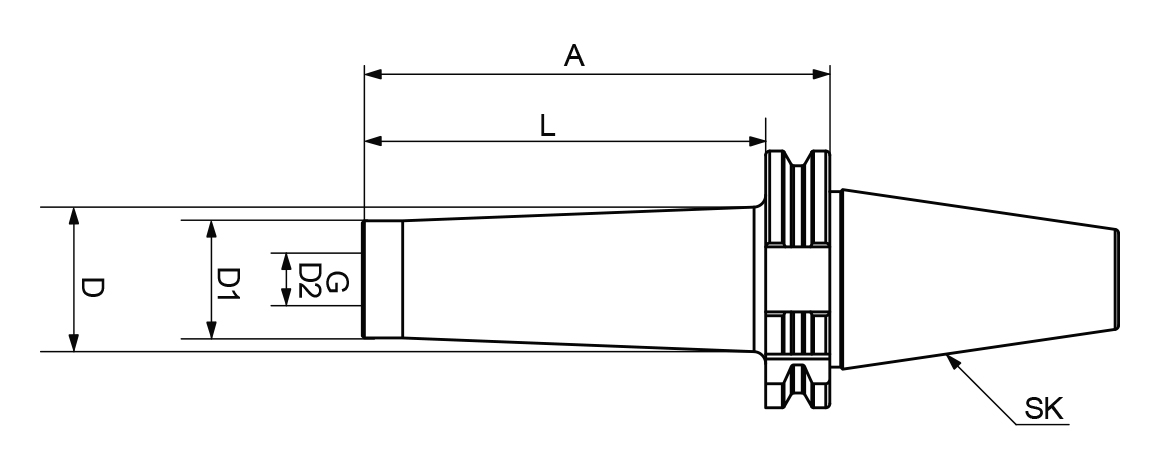

Größe / Size G D2 mm D1 mm D mm A mm L mm SK 40 M8... more
Größe /
Size
G D2
mm
D1
mm
D
mm
A
mm
L
mm
SK 40 M8 8,5 13 15 44 25
SK 40 M8 8,5 13 23 69 50
SK 40 M8 8,5 13 23 94 75
SK 40 M10 10,5 18 20 44 25
SK 40 M10 10,5 18 23 69 50
SK 40 M10 10,5 18 28 94 75
SK 40 M12 12,5 21 24 44 25
SK 40 M12 12,5 21 24 69 50
SK 40 M12 12,5 21 31 94 75
SK 40 M12 12,5 21 33 119 100
SK 40 M16 17 29 29 44 25
SK 40 M16 17 29 34 69 50
SK 40 M16 17 29 34 94 75
SK 40 M16 17 29 36 119 100
SK 40 M16 17 29 40 144 125

Gewuchtet G = 6,3 15.000 U/min. /
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
