Independent chuck, centre mount Ø 160 mm

Preview: Independent chuck, centre mount Ø 160 mm Preview: Drawing Independent chuck, centre mount Ø 160 mm
Independent chuck, centre mount Ø 160 mm

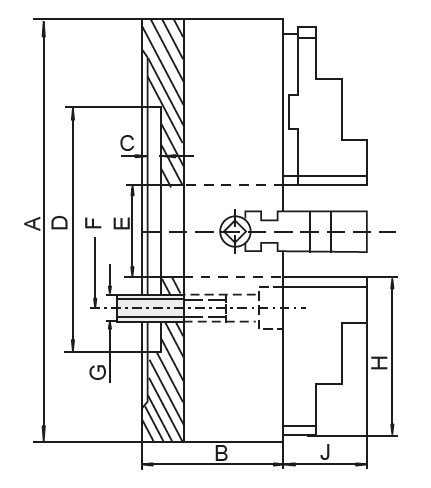

Drawing Independent chuck, centre mount Ø 160 mm

€318.38 *
€378.87 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: ZE-4100-160
  • Customs tariff number: 8466 2091
  • European article number: 4049794047217
  • Weight: 8,95 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Independent chuck, centre mount Ø 160 mm, one-piece jaws - chuck body made from cast iron... more
Close menu
Product information "Independent chuck, centre mount Ø 160 mm"

Independent chuck, centre mount Ø 160 mm, one-piece jaws

- chuck body made from cast iron
- with 4 individually adjustable jaws
- especially suitable for holding irregulary
  shaped work pieces
- inkl. 1 set hardened reversible jaws,
  wrench, fixing screws

Related links to "Independent chuck, centre mount Ø 160 mm"
Technical data
A (Ø) mm B mm C mm D mm E mm F mm G mm H mm... more
Zurück
A (Ø)
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 J
mm		 RPM MAX
min -1		 kg
80 42 3,5 55 22 66 4xM6 33 16 3000 1,9
100 54 4 72 25 84 4xM8 42 23 3000 2,4
125 56 4,5 95 30 108 4xM8 53 22 2500 5
160 65 5 65 45 95 4xM10 61,5 31,5 2000 7,5
200 75 6 75 56 95 4xM10 85 35 1800 10
250 85 7 150 65 104,8 4xM12 92 40,3 1500 25
315 85 7 175 80 133,4 4xM16 111 49,8 1200 39
400 105 10 200 100 171,4 4xM16 129 49,8 800 61
500 120 12 270 125 235 4xM20 152,5 59,8 500 105
630 140 12 270 160 235 4xM20 177 59,8 400 211
800 145 12 250 210 300 8xM20 202 70,8 300 319

Inkl. je 1 Satz einteiliger Umkehrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set hardened reversible jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
