Pneumatic chucking device for clamping heads

Preview: Pneumatic chucking device for clamping heads Preview: Detail 1 Pneumatic chucking device for clamping heads Preview: Detail 2 Pneumatic chucking device for clamping heads Preview: Drawing Pneumatic chucking device for clamping heads

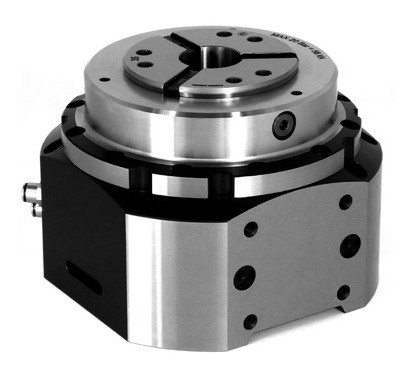

Pneumatic chucking device for clamping heads
Detail 1 Pneumatic chucking device for clamping heads
Detail 2 Pneumatic chucking device for clamping heads
Drawing Pneumatic chucking device for clamping heads

€1,495.51 *
€1,779.66 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-PSM-SK65
  • Customs tariff number: 8466 2091
  • European article number: 4049794079928
  • Weight: 10,5 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Pneumatic chucking device for clamping heads - for clamping heads size 65 - 174 x 174 x... more
Close menu
Product information "Pneumatic chucking device for clamping heads"

Pneumatic chucking device
for clamping heads

- for clamping heads size 65
- 174 x 174 x height 130 mm

Related links to "Pneumatic chucking device for clamping heads"
Technical data
Für Größe / For size A mm H mm D mm Max. Bohrung / Max. bore... more
Zurück
Für Größe /
For size		 A
mm		 H
mm		 D
mm		 Max. Bohrung /
Max. bore		 6 bar
KN		 8 bar
KN		 10 bar
KN		 Max. 20 bar
KN

65 174 x 174 130 198 65 16 22 28 56

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
