4-jaw scroll chuck Bison type 3704-250

Preview: Vierbacken-Drehfutter Typ 3704-250 Preview: Zeichnung Vierbacken-Drehfutter Typ 3704-250
Vierbacken-Drehfutter Typ 3704-250

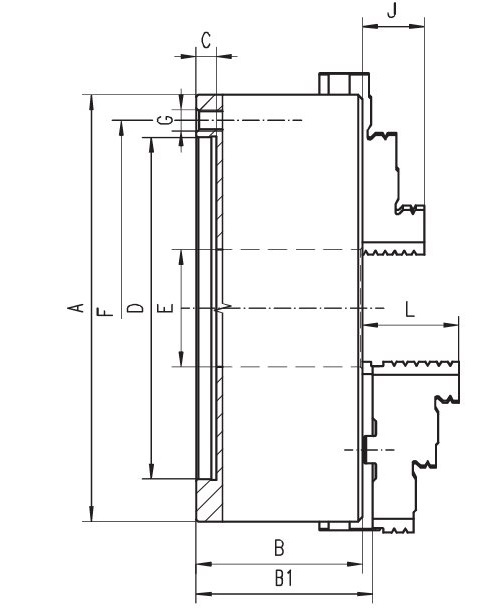

Zeichnung Vierbacken-Drehfutter Typ 3704-250

€1,305.00 *
€1,552.95 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353704060700
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 34 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
4-jaw scroll chuck Bison - plain back mounting DIN 6350  - type 3704  Ø 250 mm... more
Close menu

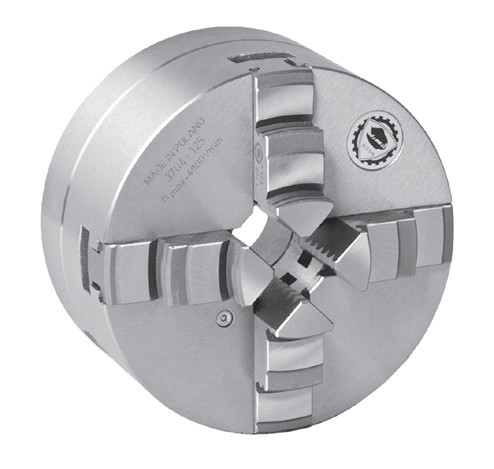

Product information "4-jaw scroll chuck Bison type 3704-250"

4-jaw scroll chuck Bison

- plain back mounting DIN 6350
- type 3704 Ø 250 mm
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
  and 1 wrench

Related links to "4-jaw scroll chuck Bison type 3704-250"

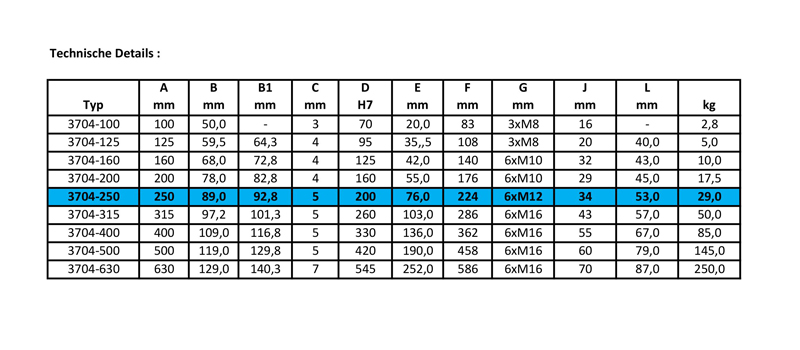

Technical data
more
Zurück

353704060700-3704-250

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "4-jaw scroll chuck Bison type 3704-250"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.
