4-jaw scroll chuck Bison type 3704-400

€4,404.00 *
€5,240.76 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353704080000
  • 84662091
  • 85 kg
  • 0
4-jaw scroll chuck Bison - plain back mounting DIN 6350  - type 3704  Ø 400 mm... more
Product information "4-jaw scroll chuck Bison type 3704-400"

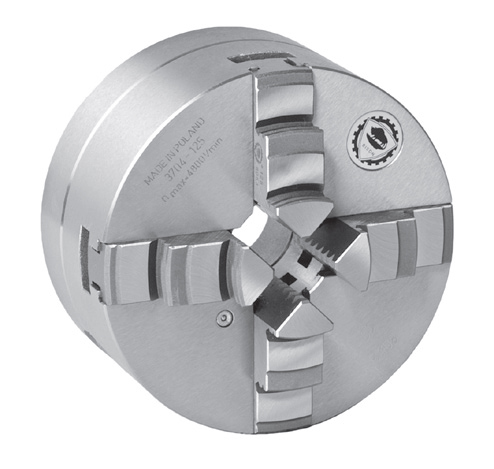

4-jaw scroll chuck Bison

- plain back mounting DIN 6350
- type 3704 Ø 400 mm
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Related links to "4-jaw scroll chuck Bison type 3704-400"

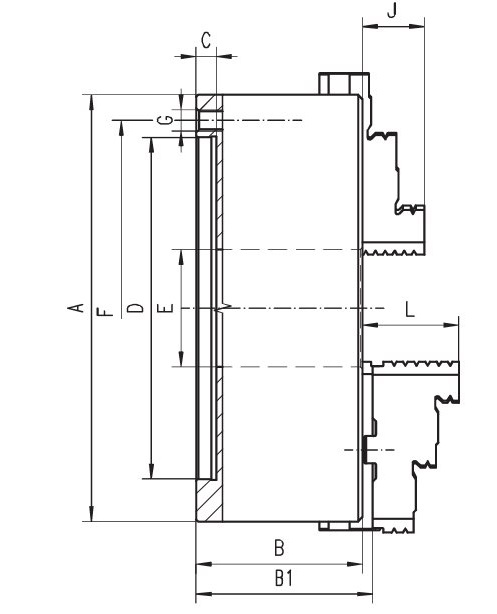

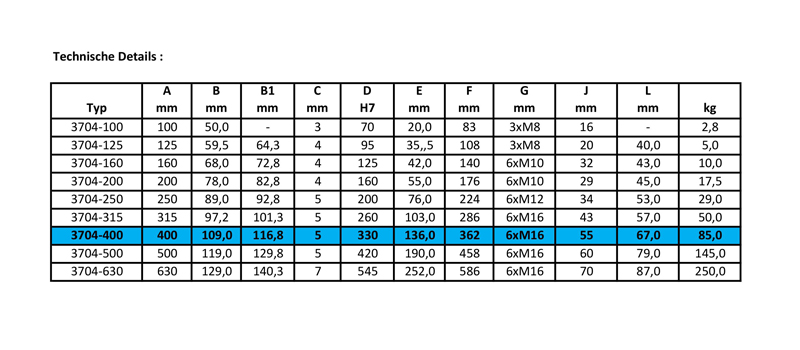

A B B1 C D H7 E F G J L kg 100 50,0 - 3 70 20,0 83... more
A B B1 C D H7 E F G J L kg
100 50,0 - 3 70 20,0 83 3xM8 16 - 2,8
125 59,5 64,3 4 95 35,5 108 3xM8 20 40 5,0
160 68,0 72,8 4 125 42,0 140 6xM10 32 43 10,0
200 78,0 82,8 4 160 55,0 176 6xM10 29 45 17,5
250 89,0 92,8 5 200 76,0 224 6xM12 34 53 29,0
315 97,2 101,3 5 260 103,0 286 6xM16 43 57 50,0
400 109,0 116,8 5 330 136,0 362 6xM16 55 67 85,0
500 119,0 129,8 5 420 190,0 458 6xM16 60 79 145,0

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
