Soft top jaws for four-jaw lathe chucks Ø 250 mm

Preview: Soft top jaws for four-jaw lathe chucks Ø 250 mm Preview: Drawing 1 Soft top jaws for four-jaw lathe chucks Ø 250 mm Preview: Drawing 2 Soft top jaws for four-jaw lathe chucks Ø 250 mm

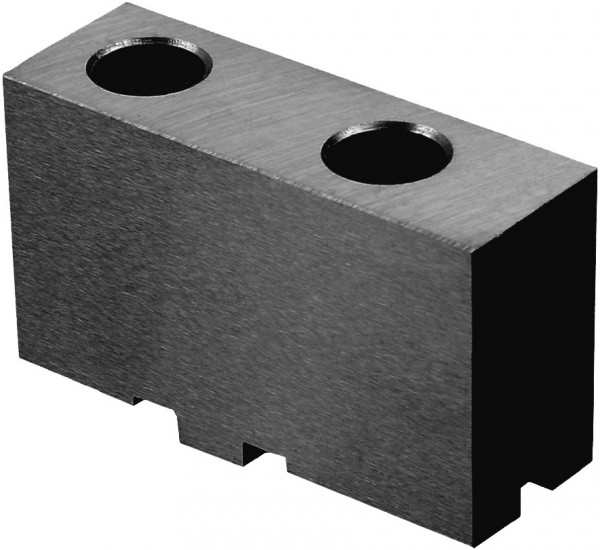

Soft top jaws for four-jaw lathe chucks Ø 250 mm

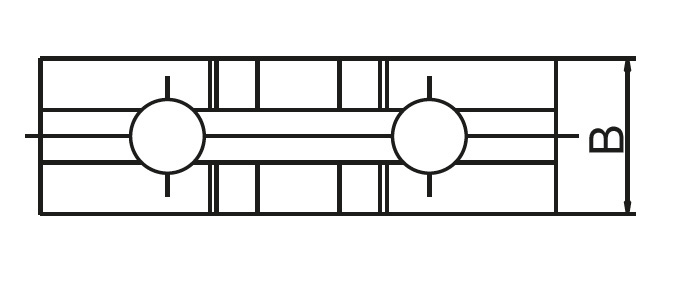

Drawing 1 Soft top jaws for four-jaw lathe chucks Ø 250 mm

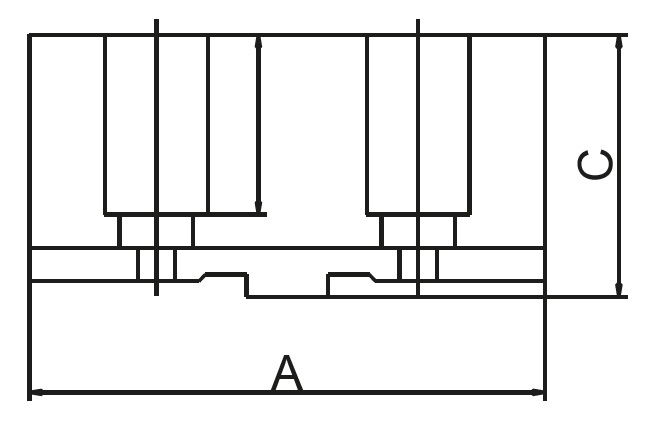

Drawing 2 Soft top jaws for four-jaw lathe chucks Ø 250 mm

€88.56 *
€105.39 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-WAB36-250
  • Customs tariff number: 8466 2091
  • European article number: 4049794045411
  • Weight: 4,45 kg
  • In stock: 28
Description Technical data Product Safety Information Evaluations 0
Description
Soft top jaws for lathe chucks Ø 250 mm - material C45,   4 pieces per set more
Close menu
Product information "Soft top jaws for four-jaw lathe chucks Ø 250 mm"

Soft top jaws for lathe chucks Ø 250 mm

- material C45,
  4 pieces per set

Make: Zentra
Jaws: Soft top jaws
Jaws for lathe chucks type: 4-jaw lathe chucks
Jaws for Ø: 250 mm
Related links to "Soft top jaws for four-jaw lathe chucks Ø 250 mm"
Technical data
Für / for Ø mm A mm B mm C mm 125 64 22 38,5... more
Zurück
Für / for
Ø mm		 A
mm		 B
mm		 C
mm
125 64 22 38,5
160 78 25 41,5
200 90 27 43,5
250 106 32 51,5
315 120 37 55
400 140 42 64,5
500 140 42 74,5
630/800 160 50 80

Preis pro Satz / Price per set

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
