Hard master jaws for 2-jaw scroll chucks Ø 250 mm

€138.00 *
€164.22 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398530730000
  • 84662091
  • 1 kg
  • 0
Hard master jaws for Bison 2-jaw scroll chucks Ø 250 mm - material: steel - 2... more
Product information "Hard master jaws for 2-jaw scroll chucks Ø 250 mm"

Hard master jaws for
Bison 2-jaw scroll chucks Ø 250 mm

- material: steel
- 2 pieces/set

Related links to "Hard master jaws for 2-jaw scroll chucks Ø 250 mm"

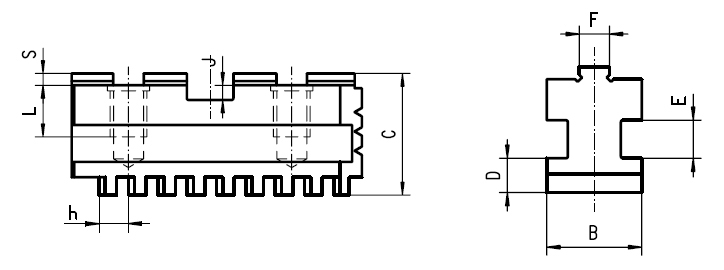

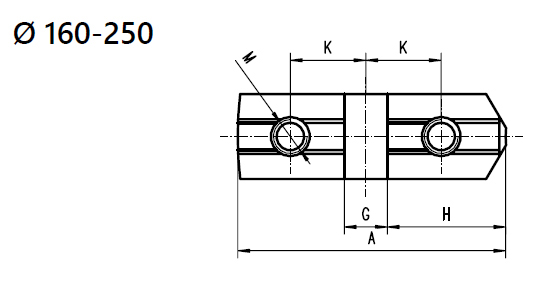

Futtergröße / Chuck size A B C D E F G H J K L M* S h kg pro... more
Futtergröße /
Chuck size
A B C D E F G H J K L M* S h kg pro Stück /
kg per piece
160 65 20 29 8,0 8 7,94 12,69 28,6 4,0 19,05 14 M10 3,2 8 0,2
200 79 25 33 9,0 10 7,94 12,69 34,9 4,0 22,25 14 M10 3,2 8 0,3
250 92 28 36 11,0 12 12,70 19,04 39,7 4,0 27,00 16 M12 3,2 9 0,5
315 110 32 40 12,7 12 12,70 19,04 47,6 4,0 31,75 16 M12 3,2 10 0,8
400 130 36 49 15,0 14 12,70 19,04 57,1 7,2 38,10 22 M16 3,2 12 1,1

* Schrauben sind im Lieferumfang enthalten / Screws are included in delivery

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
