Three-jaw lathe chuck with angle drive, type 200

€1,121.04 *
€1,334.04 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-SDF3WT-200
  • 8466 2091
  • 4049794666746
  • 20 kg
  • 0
Three-jaw lathe chuck type 200 with angle drive - clamping range: 8 - 180 mm - angle drive... more
Product information "Three-jaw lathe chuck with angle drive, type 200"

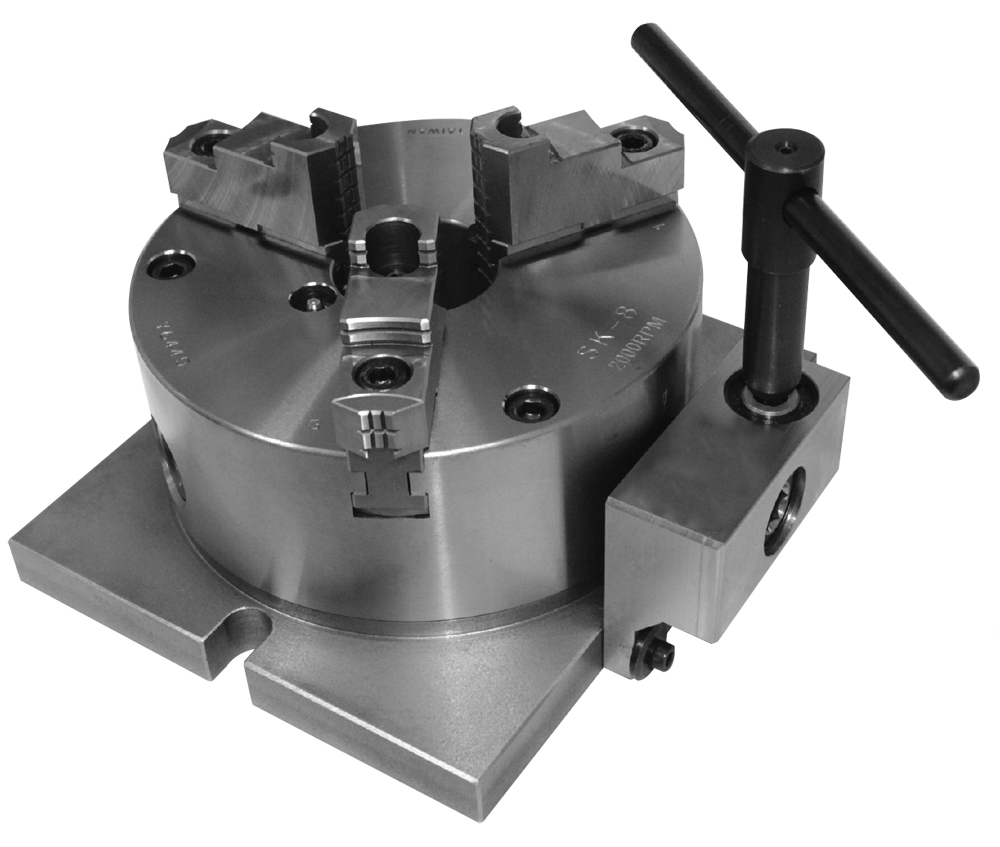

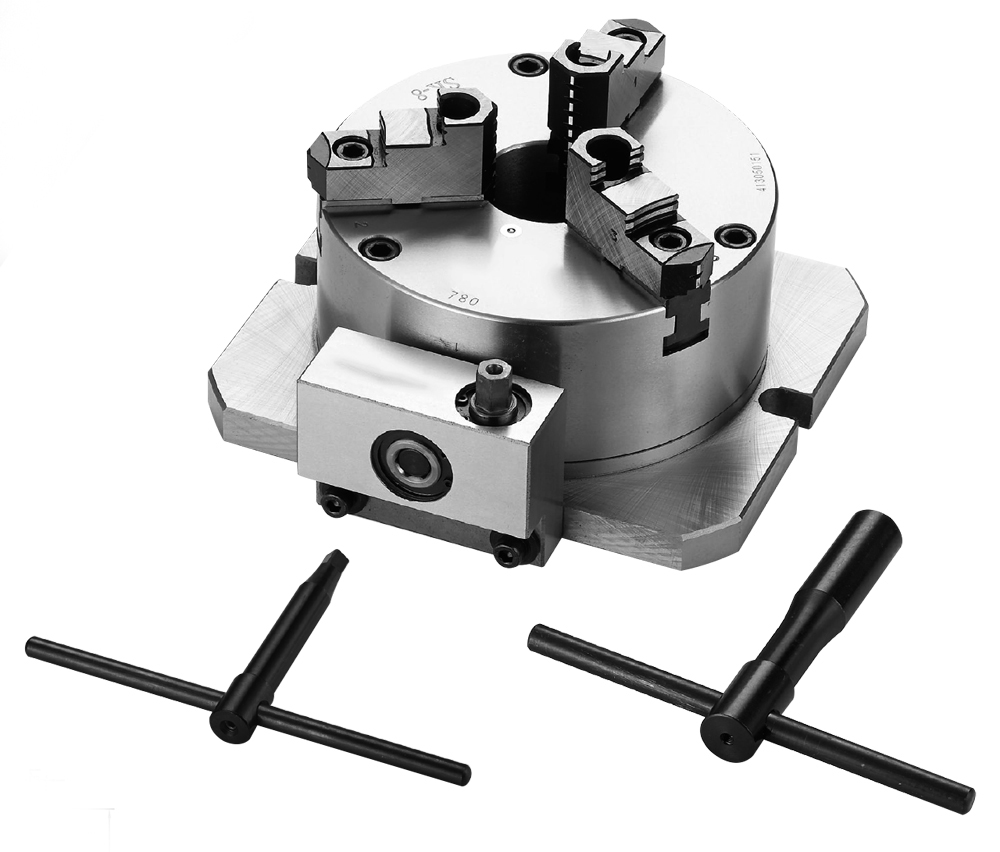

Three-jaw lathe chuck type 200 with angle drive

- clamping range: 8 - 180 mm
- angle drive with dual operation
- extra thin chuck design increases machining space
- may be used with hard or soft jaws

/ Incl. four-jaw lathe chuck available upon request.

Type: 3-jaw lathe chucks
Make: Zentra
Related links to "Three-jaw lathe chuck with angle drive, type 200"

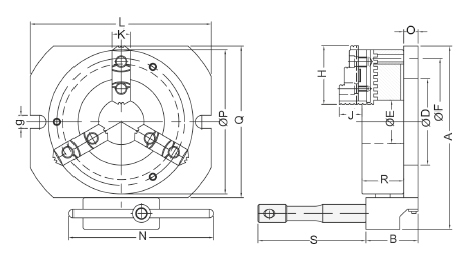

Typ / Type A mm B mm D mm F mm E mm O mm G mm H mm S mm 150 219... more
Typ /
Type
A
mm
B
mm
D
mm
F
mm
E
mm
O
mm
G
mm
H
mm
S
mm
150 219 83 90 147 45 20 3-M10 72 150
200 254 83 120 176 58 20 3-M10 82 150
250 327 83 190 250 87 24 3-M12 100 150
300 364 83 220 285 105 24 3-M12 114 150

K
mm
J
mm
L
mm
g
mm
N
mm
P
mm
Q
mm
R
mm
Spannbereich /
Clamping range mm
kg
26 39 215 18 200 165 175 67 8 - 160 18
28 43 250 18 200 200 200 76,5 8 - 180 25
35 50 324 18 200 273 283 87 12 - 260 49
40 56 360 18 200 310 320 96 15 - 300 64

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
