Stationary four-jaw lathe chuck, type 250

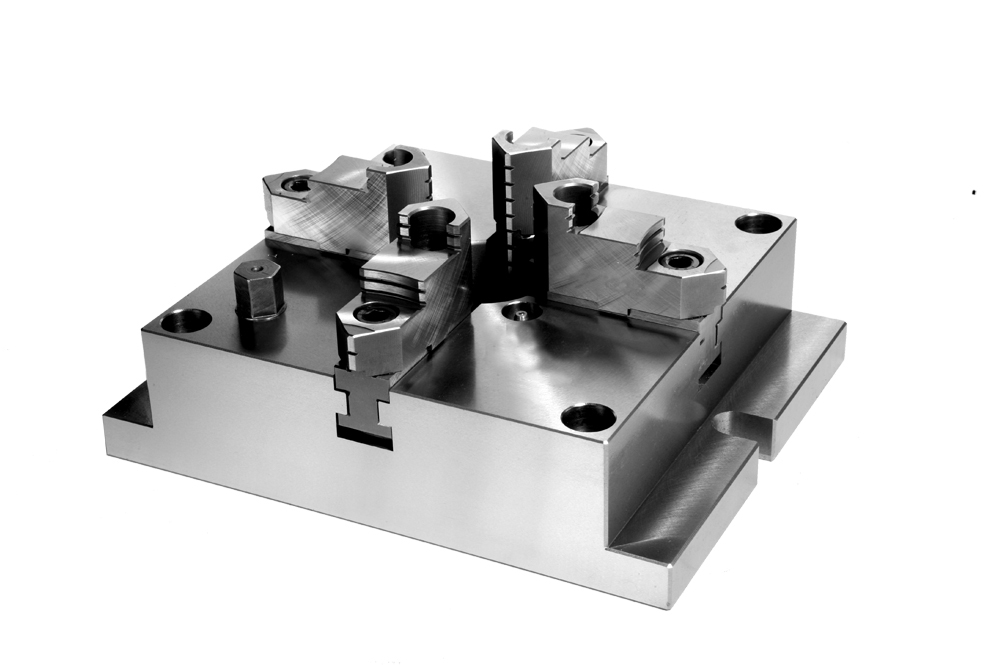

Preview: Stationary four-jaw lathe chuck, type 250 Preview: Drawing Stationary four-jaw lathe chuck, type 250
Stationary four-jaw lathe chuck, type 250

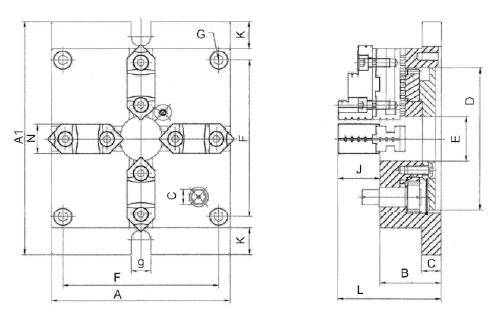

Drawing Stationary four-jaw lathe chuck, type 250

€1,394.28 *
€1,659.19 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-SDF4-250
  • Customs tariff number: 8466 2091
  • European article number: 4049794053942
  • Weight: 36 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Four-jaw lathe chuck type 250, stationary - clamping range: 6 - 200 mm - safe gripping of... more
Close menu
Product information "Stationary four-jaw lathe chuck, type 250"

Four-jaw lathe chuck type 250, stationary

- clamping range: 6 - 200 mm
- safe gripping of work piece (precision: 0,03 mm)
- large work pieces can be held thanks to low profile body
- able to grip square work pieces by using this chuck
  as a two-way jaw unit
- with dirt cover
- with thru bore
- handle is set on the face and does not interfere
  with the table
- several chucks may be combined

Type: 4-jaw lathe chucks
Make: Zentra
Related links to "Stationary four-jaw lathe chuck, type 250"
Technical data
Typ / Type A mm A1 mm F mm g mm K mm N mm D mm 165 165 215 144... more
Zurück
Typ /
Type		 A
mm		 A1
mm		 F
mm		 g
mm		 K
mm		 N
mm		 D
mm
165 165 215 144 18 25 26 130
200 200 250 174 18 25 28 160
250 250 310 218 18 30 32 200
310 310 380 274 22 35 40 260

E
mm		 C
mm		 B
mm		 L
mm		 J
mm		 G
mm		 Spannbereich /
Clamping range mm		 kg
40 18 57 96 40 4-M10 4 - 128 14
55 20 65 108 43 4-M12 5 - 162 22
70 22 72 122 52 4-M14 6 - 200 36
100 25 85 141 59 4-M16 10 - 265 62

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
