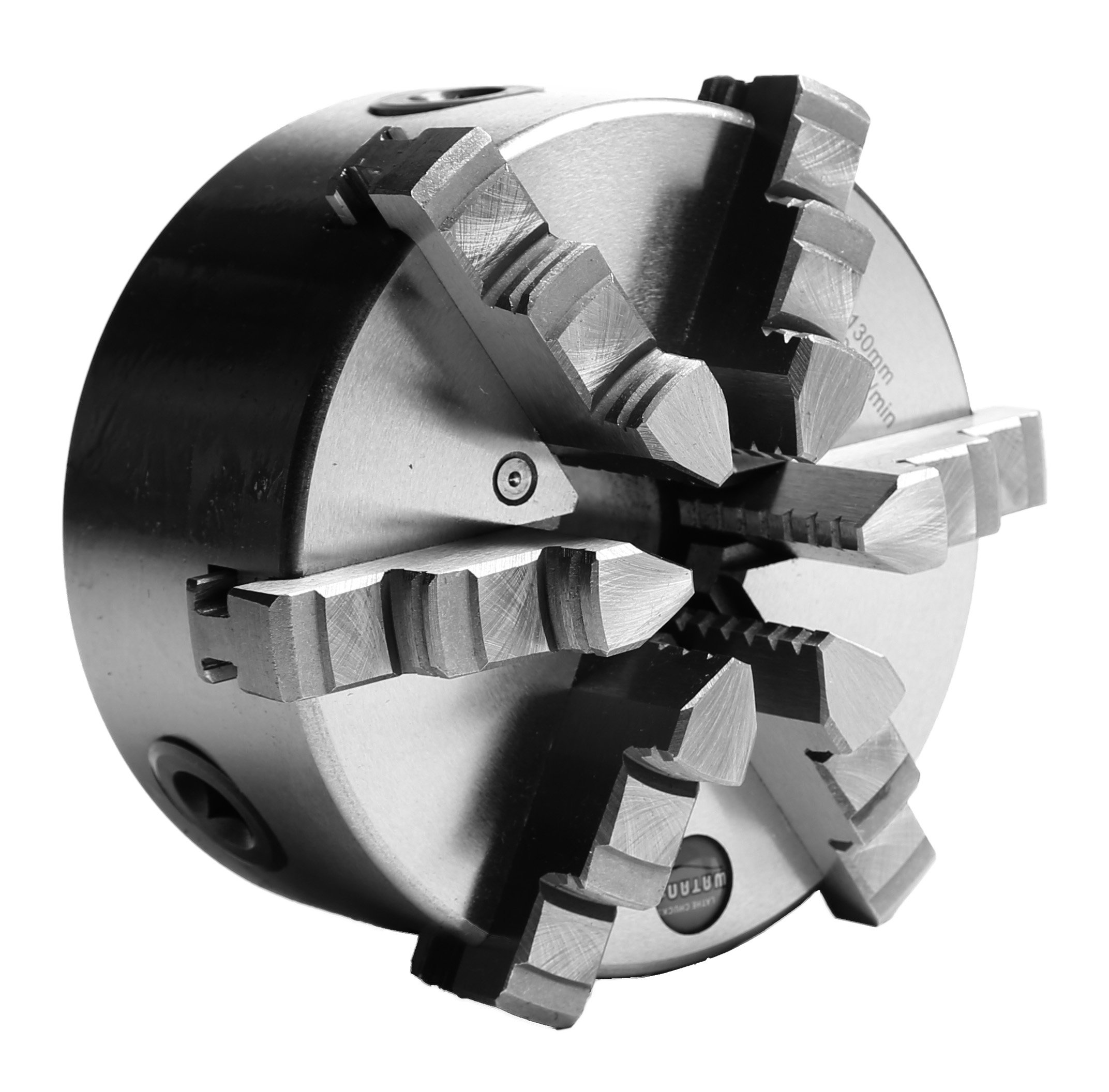

Six-jaw lathe chuck Basic Ø 100 mm
€146.88*
€174.79 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
WAT-D100/6-ZGE
Customs tariff number
8466 2091
European Article Number
4049794671214
Weight
3 kg
Stock:
5
Related links:
Request Item
Product information "Six-jaw lathe chuck Basic Ø 100 mm"
Six-jaw lathe chuck Basic
- centre mount acc. to factory standard, one-piece jaws
- chuck body made from cast iron
- self-centering
- inkl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing screws
| DIN: | centre mount acc. to factory standard |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Basic |
| Material: | Cast iron |
| Type: | 6-jaw lathe chucks |
| Ø : | 100 mm |

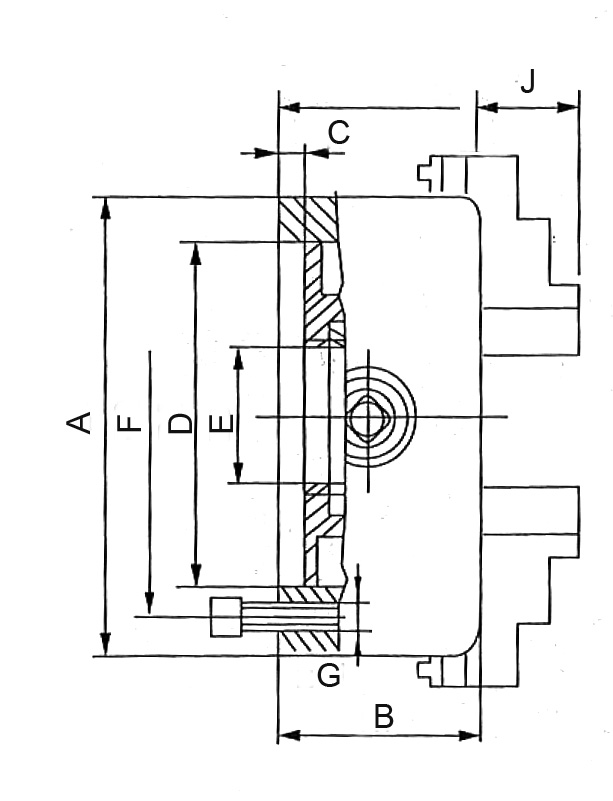

Technical Data
| A (Ø) mm |
D mm |
F mm |
E mm |
J mm |
B mm |
C mm |
G mm |
Rundlauf / Runout Ø |
RPM MAX min -1 |
kg |
| 100 | 72 | 84 | 26 | 19,5 | 55 | 3 | 3-M6 | 0,08 | 3500 | 3 |
| 130 | 100 | 115 | 35 | 28,5 | 58 | 5 | 3-M8 | 0,08 | 3000 | 6 |
| 165 | 130 | 145 | 45 | 29 | 65 | 5 | 3-M8 | 0,08 | 2500 | 9 |
| 200 | 165 | 180 | 65 | 34 | 75 | 6 | 3-M10 | 0,1 | 2000 | 16 |
| 252 | 206 | 226 | 80 | 40 | 80 | 6 | 3-M12 | 0,1 | 1600 | 26 |
| Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws |
||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
