Stationary three-jaw lathe chuck, type 210

€939.67 *
€1,118.21 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-SDF3-210
  • 8466 2091
  • 4049794053898
  • 20,35 kg
  • 5
Stationary three-jaw lathe chuck, extra thin, type 210 - clamping range: 11 - 200 mm - 30°... more
Product information "Stationary three-jaw lathe chuck, type 210"

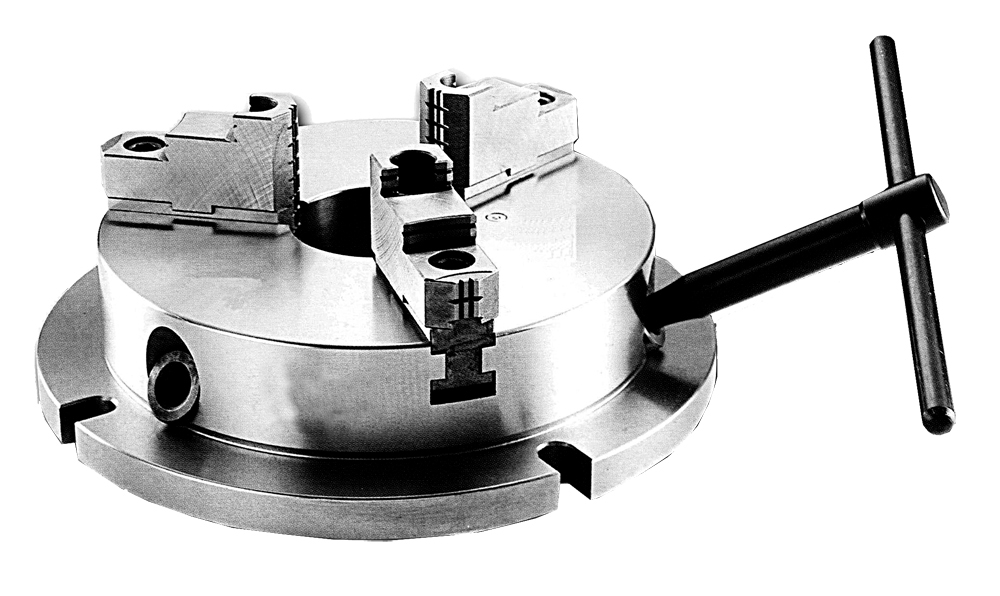

Stationary three-jaw lathe chuck, extra thin, type 210

- clamping range: 11 - 200 mm
- 30° angle between wrench and base
  for easy of handling
- extra thin chuck design increase machining space
- may be used with hard or soft jaws
- incl. wrench

Type: 3-jaw lathe chucks
Make: Zentra
Related links to "Stationary three-jaw lathe chuck, type 210"

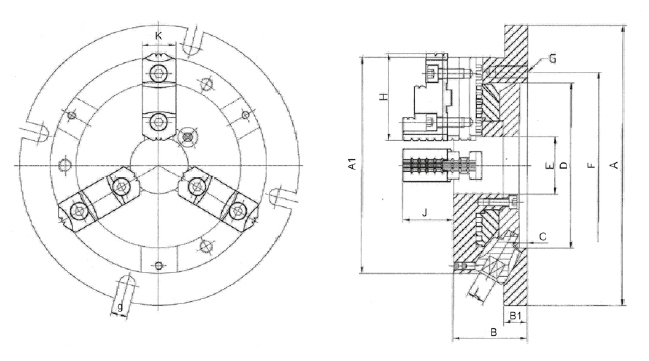

Typ / Type A mm A1 mm B mm B1 mm D mm F mm E mm 170 220 170 58... more
Typ /
Type
A
mm
A1
mm
B
mm
B1
mm
D
mm
F
mm
E
mm
170 220 170 58 18 130 147 45
210 270 210 65 20 155 172 60
255 315 255 73 20 190 210 80
305 370 305 80 22 250 285 105

C
mm
G
mm
H
mm
K
mm
J
mm
L
mm
g
mm
Spannbereich /
Clamping range mm
6 3-M10 68 26 40 10 13 8 - 160
6 3-M10 82 28 43 11 13 11 - 200
6 3-M12 93 32 52 12 16 12 - 250
5 3-M12 118 40 59 14 18 15 - 300

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
