Four-jaw chuck with swivel base, type 160

€392.54 *
€467.12 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-1400-160
  • 8466 2091
  • 4049794053980
  • 18 kg
  • 2
Four-jaw chuck Ø 160 mm with swivel base - 360° degree scale - smooth swivel motion and... more
Product information "Four-jaw chuck with swivel base, type 160"

Four-jaw chuck Ø 160 mm with swivel base

- 360° degree scale
- smooth swivel motion and easy handling
- for stationary use
- incl. 1 set each of solid jaws internally / externally stepped, wrench

Type: 4-jaw lathe chucks
Make: Zentra
Related links to "Four-jaw chuck with swivel base, type 160"

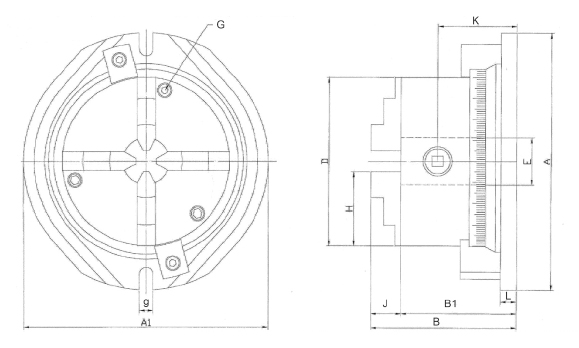

Typ / Type A mm A1 mm B mm B1 mm D mm E mm 160 245 233... more
Typ /
Type
A
mm
A1
mm
B
mm
B1
mm
D
mm
E
mm
160 245 233 139 110 160 45
200 305 270 159 125 200 65

L
mm
H
mm
G
mm
K
mm
J
mm
g
mm
kg
15 70 3-M8 69 29 14 18
20 86 3-M10 75 34 18 31

Inkl. je 1 Satz Dreh- und Bohrbacken, Bedienschlüssel /
Incl. 1 set each of solid jaws internally / externally stepped, wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
