Three-jaw lathe chuck DIN 6350 Ø 630 mm

€4,483.80 *
€5,335.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-6353-630
  • 8466 2091
  • 4049794038741
  • 247 kg
  • 3
Three-jaw lathe chuck DIN 6350 - centre mount, one-piece jaws - suitable for all types of... more
Product information "Three-jaw lathe chuck DIN 6350 Ø 630 mm"

Three-jaw lathe chuck DIN 6350

- centre mount, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 630 mm
DIN: 6350
Jaws: one-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 6350 Ø 630 mm"

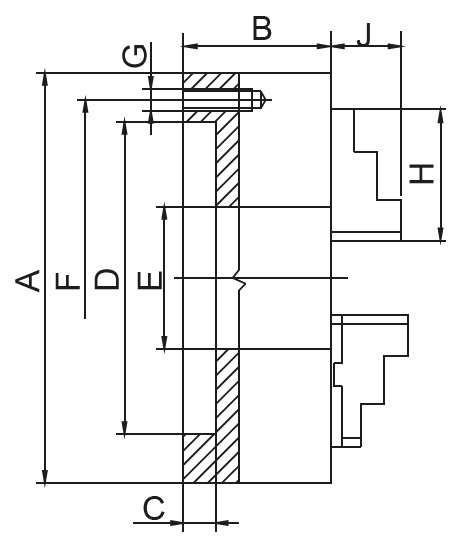

A (Ø) mm B mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX min -1 kg 80... more
A (Ø)
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
RPM MAX
min -1
kg
804435616673xM6321340001,5
1005037020833xM8421735002,8
12556495321083xM8512032005
160644125421406xM107032300010
200754160551766xM108529250016,6
250855200762246xM1210534200029
3159452601032866xM1612543150050
40010553301363626xM1614555100085
50012054201904586xM1618060700145
63013575452525866xM1622570500250
80015920450320368,322570300402

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
