Three-jaw lathe chuck DIN 55026 Ø 400 mm, Taper 8
Product information "Three-jaw lathe chuck DIN 55026 Ø 400 mm, Taper 8"
Three-jaw lathe chuck DIN 55026 Ø 400 mm
- according to DIN 55026, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing bolts
| DIN: | 55026 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Zentra |
| Material: | Steel |
| Taper: | 8 |
| Type: | 3-jaw lathe chucks |
| Ø : | 400 mm |

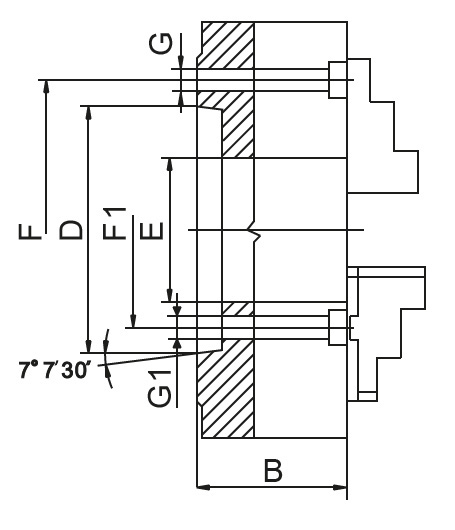

Technical Data
| Ø mm | KK / Taper | Typ / Type | B mm | D mm | E mm | F mm | F1 mm | G mm | G1 mm | RPM MAX min -1 | kg |
| 160 | 5 | A1 | 68 | 82,6 | 42 | – | 62 | – | M10 | 4500 | 10 |
| 200 | 5 | A1 | 78 | 82,6 | 42 | – | 62 | – | M10 | 4000 | 19 |
| 200 | 6 | A1 | 78 | 106,4 | 55 | – | 82 | – | M12 | 4000 | 19 |
| 250 | 5 | A2 | 89 | 82,6 | 76 | 104,8 | – | M10 | – | 3500 | 32 |
| 250 | 6 | A1 | 89 | 106,4 | 55 | – | 82 | – | M12 | 3500 | 32 |
| 250 | 8 | A1 | 89 | 139,7 | 76 | – | 111 | – | M16 | 3500 | 32 |
| 315 | 6 | A2 | 96,2 | 106,4 | 103 | 133,4 | – | M12 | – | 2800 | 55 |
| 315 | 8 | A1 | 96,2 | 139,7 | 80 | – | 111 | – | M16 | 2800 | 55 |
| 400 | 8 | A2 | 108 | 139,7 | 136 | 171,4 | – | M16 | – | 2000 | 92 |
| 400 | 11 | A1 | 108 | 196,9 | 130 | – | 165 | – | M20 | 2000 | 92 |
| 500 | 11 | A2 | 119 | 196,9 | 190 | 235 | – | M20 | – | 1200 | 160 |
| Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws | |||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | |||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
