Three-jaw lathe chuck, fine adjustment Ø 200

€523.44 *
€622.89 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-8363-200FE
  • 8466 2091
  • 4049794042403
  • 19,5 kg
  • 2
Three-jaw lathe chuck Ø 200 mm, two-piece jaws - lathe chucks with radial fine adjustment... more
Product information "Three-jaw lathe chuck, fine adjustment Ø 200"

Three-jaw lathe chuck Ø 200 mm, two-piece jaws

- lathe chucks with radial fine adjustment provides
  high concentricity, suitable for admission from the front
- adjusting accuracy within 0,005 mm
- repeatibility 0,015 mm

- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing screws

Related links to "Three-jaw lathe chuck, fine adjustment Ø 200"

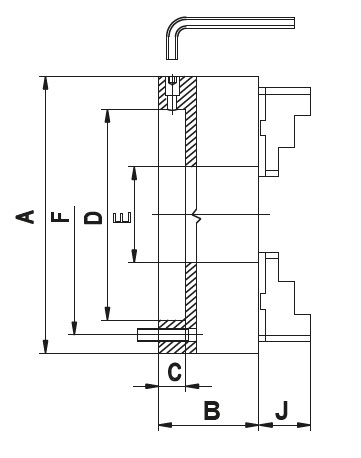

A (Ø) mm C mm D mm E mm F mm B mm J mm... more
A (Ø)
mm
C
mm
D
mm
E
mm
F
mm
B
mm
J
mm
RPM MAX
min -1
125 15 55 35,5 108 71,5 40 3800
160 18 86 42 140 68 43 3500
200 20 110 55 176 78 45 3100
250 20 145 76 224 89 53 2700
315 20 180 103 286 96,2 57 2200
400 22 299,2 136 171,5 123 67 1800

Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
