Hard op jaws for three-jaw lathe chucks Ø 630/800 mm
€500.47*
€595.56 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-HAB35-630/800
Customs tariff number
8466 2091
European Article Number
4049794044773
Weight
8 kg
Stock:
2
Related links:
Request Item
Product information "Hard op jaws for three-jaw lathe chucks Ø 630/800 mm"

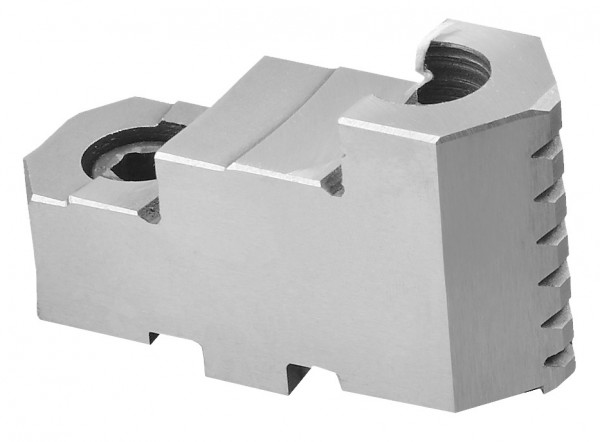

Hard reversible top jaws for three-jaw lathe chucks Ø 630/800 mm
- 3 pieces per set
| Jaws: | Hard top jaws |
|---|---|
| Jaws for lathe chucks type: | 3-jaw lathe chucks |
| Jaws for Ø: | 630 mm, 800 mm |
| Make: | Zentra |

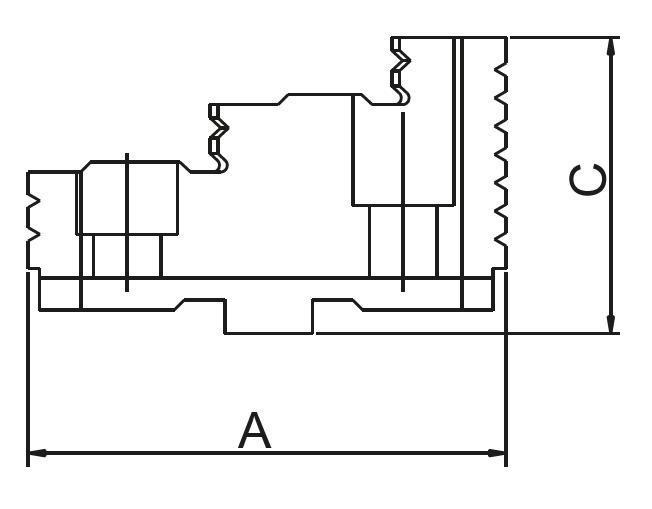

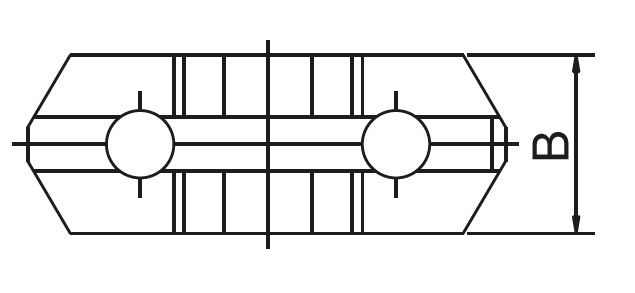

Technical Data
| Für / for Ø mm |
A mm |
B mm |
C mm |
| 125 | 56 | 22 | 38,5 |
| 160 | 67 | 25 | 41,5 |
| 200 | 80 | 27 | 43,5 |
| 250 | 95 | 32,5 | 51,5 |
| 315 | 110 | 37 | 55 |
| 400 | 127 | 42 | 64,5 |
| 500 | 127 | 42 | 74,5 |
| 630/800 | 127 | 52 | 82 |
| Preis pro Satz / Price per set | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
