Three-jaw lathe chuck DIN 6350 Ø 160 mm

€208.08 *
€247.62 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-6353-160
  • 8466 2091
  • 4049794038680
  • 9,9 kg
  • 26
Three-jaw lathe chuck DIN 6350 - centre mount, one-piece jaws - suitable for all types of... more
Product information "Three-jaw lathe chuck DIN 6350 Ø 160 mm"

Three-jaw lathe chuck DIN 6350

- centre mount, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 160 mm
DIN: 6350
Jaws: one-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 6350 Ø 160 mm"

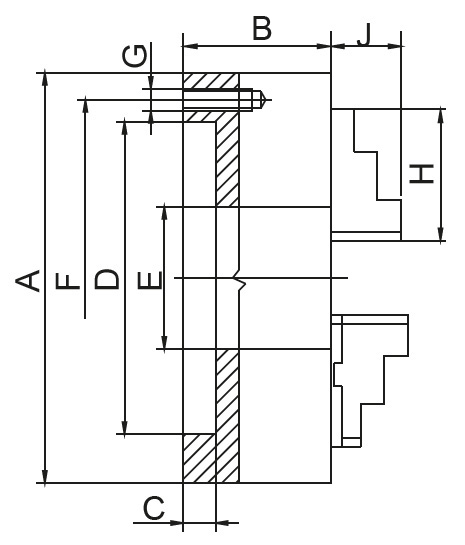

A (Ø) mm B mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX min -1... more
A (Ø)
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
RPM MAX
min -1
kg
80 44 3 56 16 67 3xM6 32 13 4000 1,5
100 50 3 70 20 83 3xM8 42 17 3500 2,8
125 56 4 95 32 108 3xM8 51 20 3200 5
160 64 4 125 42 140 6xM10 70 32 3000 10
200 75 4 160 55 176 6xM10 85 29 2500 16,6
250 85 5 200 76 224 6xM12 105 34 2000 29
315 94 5 260 103 286 6xM16 125 43 1500 50
400 105 5 330 136 362 6xM16 145 55 1000 85
500 120 5 420 190 458 6xM16 180 60 700 145
630 135 7 545 252 586 6xM16 225 70 500 250
800 159 20 450 320 368,3 225 70 300 402

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
