Three-jaw lathe chuck DIN 6350 Ø 250 mm

Preview: Three-jaw lathe chuck steel, DIN 6350 Ø 250 Preview: Drawing Three-jaw lathe chuck steel, DIN 6350 Ø 250
Three-jaw lathe chuck steel, DIN 6350 Ø 250

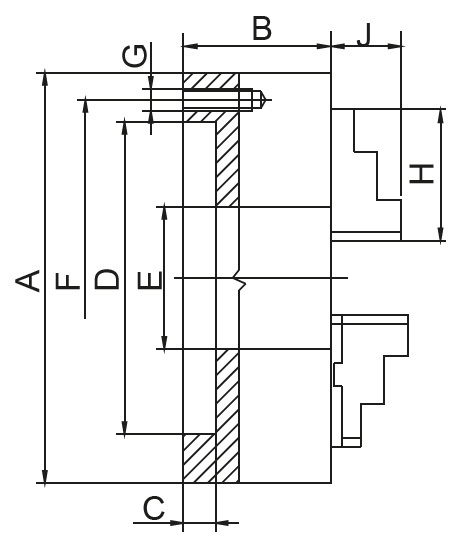

Drawing Three-jaw lathe chuck steel, DIN 6350 Ø 250

€631.80 *
€751.84 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-8353-250
  • Customs tariff number: 8466 2091
  • European article number: 4049794038918
  • Weight: 33 kg
  • In stock: 10
Description Technical data Evaluations 0
Description
Three-jaw lathe chuck DIN 6350 - centre mount, one-piece jaws - suitable for all types of... more
Close menu
Product information "Three-jaw lathe chuck DIN 6350 Ø 250 mm"

Three-jaw lathe chuck DIN 6350

- centre mount, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 250 mm
DIN: 6350
Jaws: one-piece jaws
Material: Steel
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 6350 Ø 250 mm"
Technical data
A (Ø) mm B mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX min -1 kg 80... more
Zurück
A (Ø)
mm		B
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		J
mm		RPM MAX
min -1		kg
804435616673xM6321360001,5
1005037020833xM8421752002,8
12559,549535,51083xM8512048005
160684125421406xM107032450010
200784160551766xM108529400017,5
250895200762246xM1210534350029
31596,252601032866xM1612543280050
40010853301363626xM1614555200085
50011954201904586xM16180601200145
63012975452525866xM16225701000250
80015020450320368,3–22570450402

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
