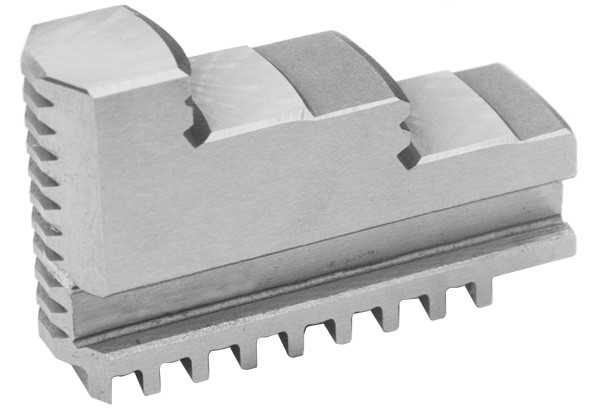

Solid jaws for three-jaw lathe chucks Ø 500 mm

€506.38 *
€602.59 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-BB35-500
  • 8466 2091
  • 4049794045626
  • 10,25 kg
  • 2
Externally stepped solid jaws for lathe chucks 3 pieces per set more
Product information "Solid jaws for three-jaw lathe chucks Ø 500 mm"

Externally stepped solid jaws for lathe chucks

3 pieces per set

Make: Zentra
Jaws: Externally stepped solid jaws
Jaws for lathe chucks type: 3-jaw lathe chucks
Jaws for Ø: 500 mm
Related links to "Solid jaws for three-jaw lathe chucks Ø 500 mm"

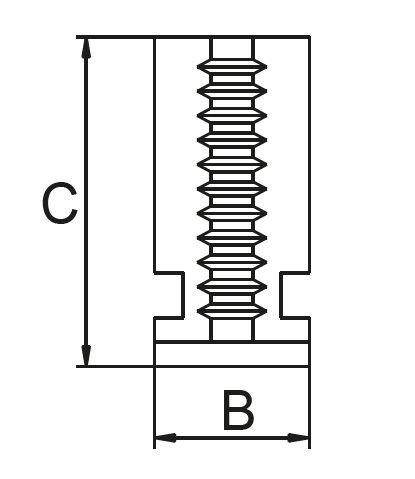

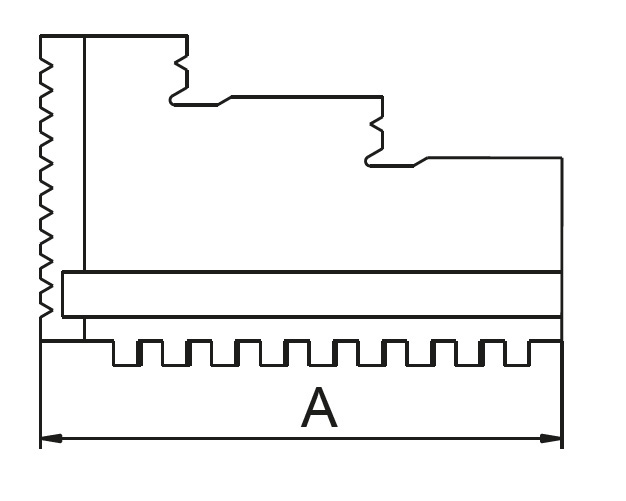

Für / for Ø mm A mm B mm C mm 80 32 11 28... more
Für / for
Ø mm
A
mm
B
mm
C
mm
80 32 11 28
100 42 15 32
125 51 20 40
160 70 20 53
200 85 25 54
250 105 28 63
315 125 32 73
400 145 36 92
500 180 40 100
630/800 225 50 110

Preis pro Satz / Price per set

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
