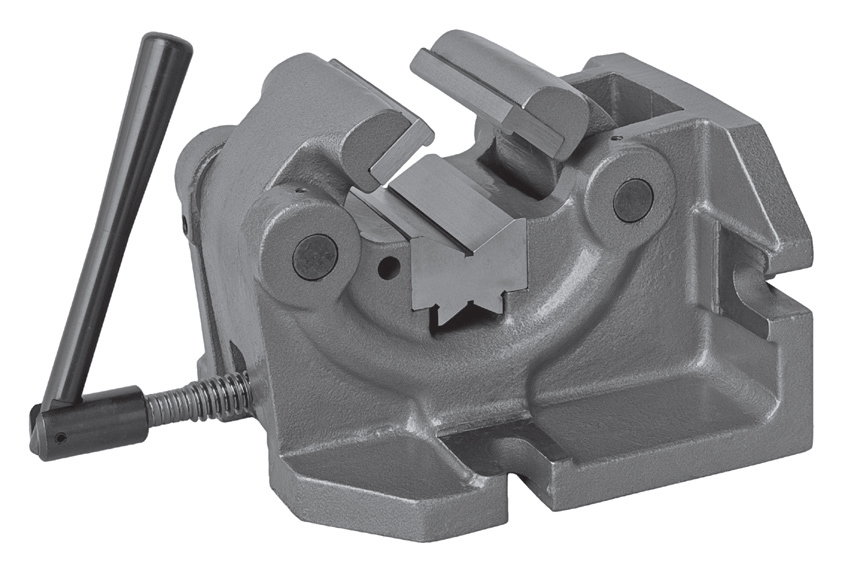

Shaft holding machine vice Bison type 6546-100

Preview: Shaft holding machine vice Bison type 6546-100 Preview: Drawing Shaft holding machine vice Bison type 6546-100
Shaft holding machine vice Bison type 6546-100

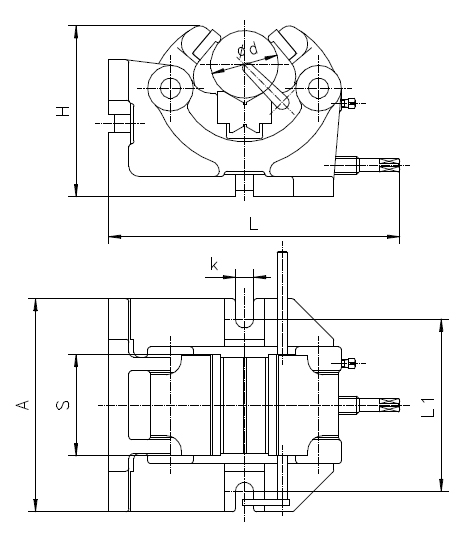

Drawing Shaft holding machine vice Bison type 6546-100

€686.80 *
€817.29 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 326545130000
  • Customs tariff number: 84662098
  • European article number:
  • Weight: 20,9 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Shaft holding machine vice Bison 6546-100 - ideal for most drilling and light milling... more
Close menu
Product information "Shaft holding machine vice Bison type 6546-100"

Shaft holding machine vice Bison 6546-100

- ideal for most drilling and light milling operations
- able to be set up in both horizontal and vertical positions
- hardened and ground jaw inserts and V-block
- sturdy, cast iron design
- incl. handcrank and slot nuts

Related links to "Shaft holding machine vice Bison type 6546-100"

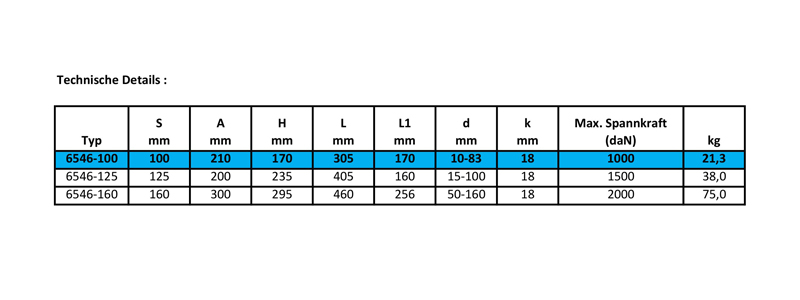

Technical data
Typ / Type S A H L L1 d k Max. Spannkraft... more
Zurück
Typ /
Type		 S A H L L1 d k Max. Spannkraft (daN) /
Max. clamping force (daN)		 kg
6546-100 100 210 170 287 170 10 – 63 18 1.000 20,9
6546-125 125 200 235 389 160 15 – 100 18 1.500 37,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
