- Order number: 326517160000
- Customs tariff number: 84662098
- European article number:
- Weight: 20,4 kg
- In stock: 0
Camlock machine vice Bison 6517-M125
- designed for use with drilling machines, drill... more
Product information "Camlock machine vice Bison type 6517-M125"

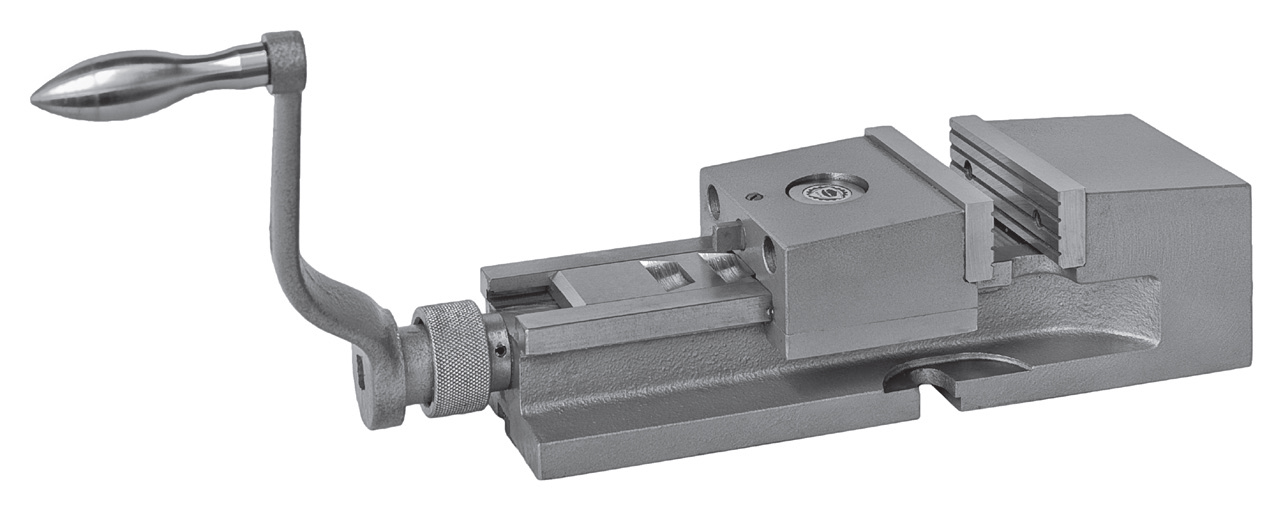

Camlock machine vice Bison 6517-M125
- designed for use with drilling machines, drill presses, etc.
- the movable rear jaw can be placed in different
positions through a unique cam locking system, making
the rear jaw positioning fast and easy
- removable grooved jaw inserts, one side smooth, the other
side grooved, are hardened and ground
- fully covered lead screw protected against dirt and chips
- fully ground steel position beam
- body and rear jaw are high quality castings
- incl. handcrank and slot nuts
Type: | Machine vices |
Jaw width: | 125 mm |
Type: | mechanically, with quick adjustment |
Clamping capacity: | 160 mm |
Make: | Bison |
Related links to "Camlock machine vice Bison type 6517-M125"
Typ / Type
S
A
H
L
L1
a
h
k
Max.... more

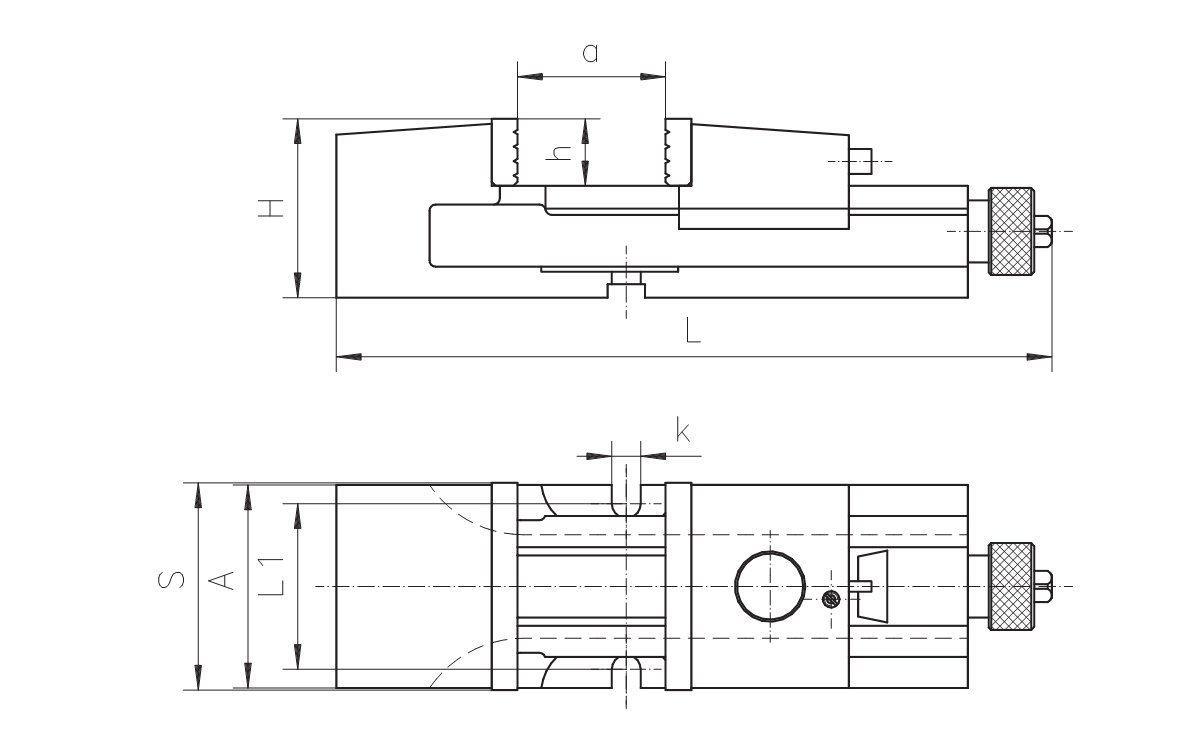

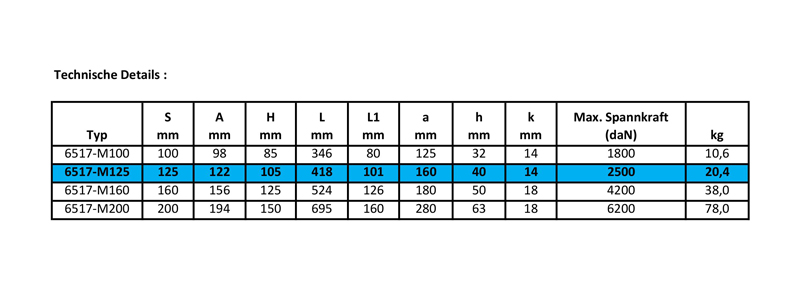

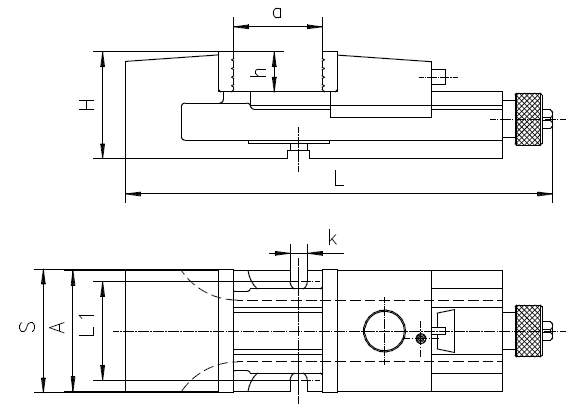

Typ / Type |
S | A | H | L | L1 | a | h | k | Max. Spannkraft (daN) / Max. clamping force (daN) |
kg |
6517-M125 | 125 | 122 | 105 | 418 | 101 | 160 | 40 | 14 | 2.500 | 20,4 |
6517-M160 | 160 | 156 | 125 | 524 | 126 | 180 | 50 | 18 | 4.200 | 38,0 |
6517-M200 | 200 | 194 | 150 | 695 | 160 | 280 | 63 | 18 | 6.200 | 78,0 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
