Machine vice Bison type 6512-160

Preview: Machine vice Bison type 6512-160 Preview: Drawing Machine vice Bison type 6512-160
Machine vice Bison type 6512-160

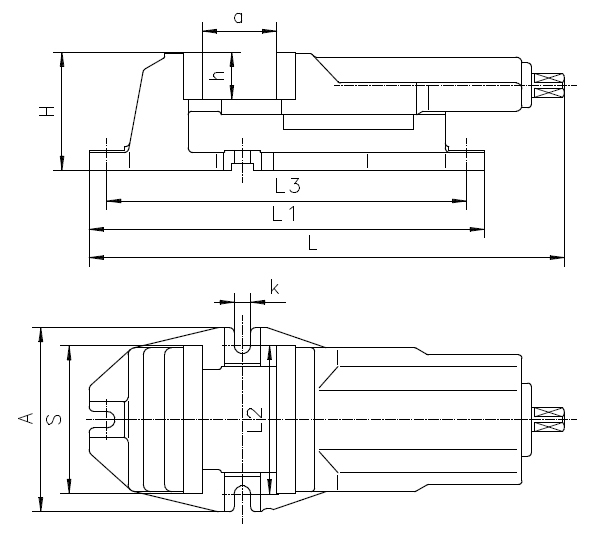

Drawing Machine vice Bison type 6512-160

€429.25 *
€510.81 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 326512070000
  • Customs tariff number: 84662098
  • European article number:
  • Weight: 29 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Machine vice Bison type 6512-160 with movable rear jaw - designed for use with milling... more
Close menu
Product information "Machine vice Bison type 6512-160"

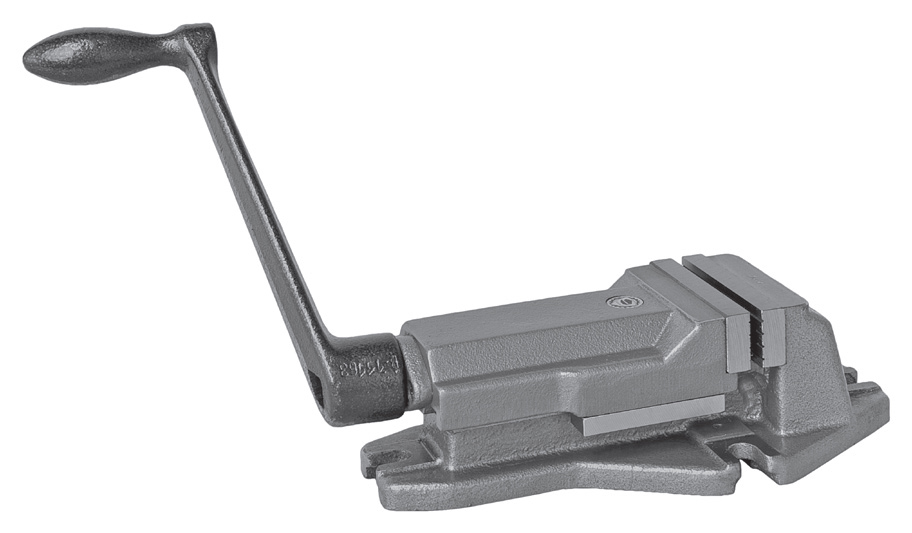

Machine vice Bison type 6512-160
with movable rear jaw

- designed for use with milling machines, drill presses, etc.
- body and movable jaw are high quality castings
- removable grooved jaw inserts are hardened and ground
- lead screw protected against dirt and chips
- incl. handcrank and slot nuts

Type: Machine vices
Jaw width: 160 mm
Type: mechanically
Clamping capacity: 125 mm
Make: Bison
Related links to "Machine vice Bison type 6512-160"
Technical data

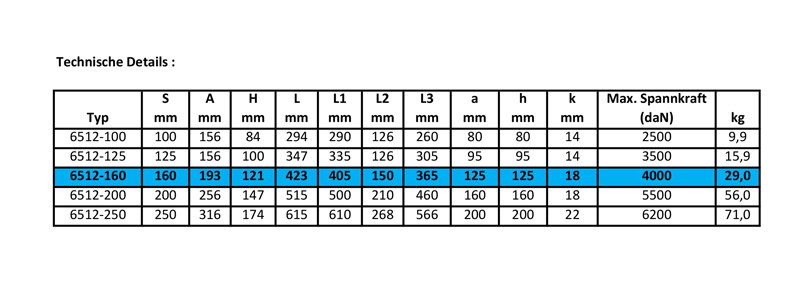

Typ / Type S A H L L1 L2 L3 a h k Max. Spannkraft (daN) / Max.... more
Zurück
Typ /
Type		 S A H L L1 L2 L3 a h k Max. Spannkraft (daN) /
Max. clamping force (daN)		 kg
6512-100 100 156 84 294 290 126 260 80 32 14 2.500 9,9
6512-125 125 156 100 347 335 126 305 95 40 14 3.500 15,9
6512-160 160 193 121 423 405 150 365 125 50 18 4.000 29,0
6512-200 200 256 147 515 500 210 460 160 63 18 5.500 56,0
6512-250 250 316 174 615 610 268 566 200 80 18 6.200 71,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
