Machine vice Bison type 6512-250

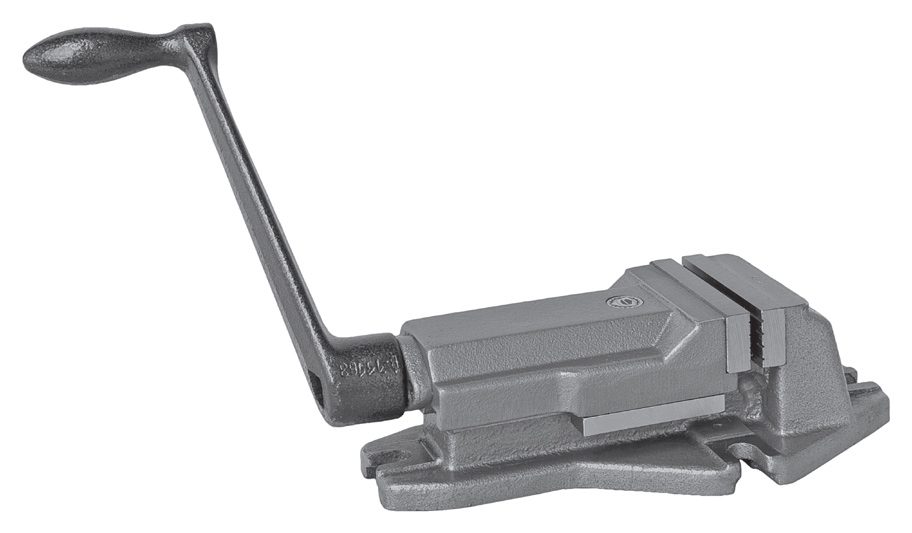

Preview: Machine vice Bison type 6512-250 Preview: Drawing Machine vice Bison type 6512-250
Machine vice Bison type 6512-250

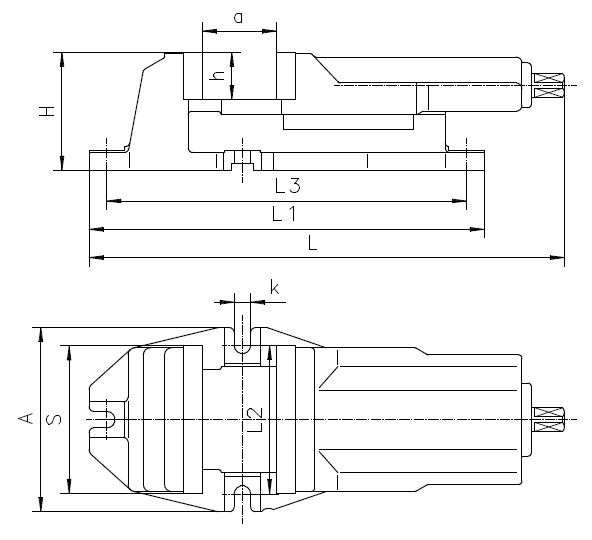

Drawing Machine vice Bison type 6512-250

€1,305.60 *
€1,553.66 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 326512090300
  • Customs tariff number: 84662098
  • European article number:
  • Weight: 71 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Machine vice Bison type 6512-250 with movable rear jaw - designed for use with milling... more
Close menu
Product information "Machine vice Bison type 6512-250"

Machine vice Bison type 6512-250
with movable rear jaw

- designed for use with milling machines, drill presses, etc.
- body and movable jaw are high quality castings
- removable grooved jaw inserts are hardened and ground
- lead screw protected against dirt and chips
- incl. handcrank and slot nuts

Type: Machine vices
Jaw width: 250 mm
Type: mechanically
Clamping capacity: 200 mm
Make: Bison
Related links to "Machine vice Bison type 6512-250"
Technical data
Typ / Type S A H L L1 L2 L3 a h k Max. Spannkraft (daN) / Max.... more
Zurück
Typ /
Type		 S A H L L1 L2 L3 a h k Max. Spannkraft (daN) /
Max. clamping force (daN)		 kg
6512-100 100 156 84 294 290 126 260 80 32 14 2.500 9,9
6512-125 125 156 100 347 335 126 305 95 40 14 3.500 15,9
6512-160 160 193 121 423 405 150 365 125 50 18 4.000 29,0
6512-200 200 256 147 515 500 210 460 160 63 18 5.500 56,0
6512-250 250 316 174 615 610 268 566 200 80 18 6.200 71,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
